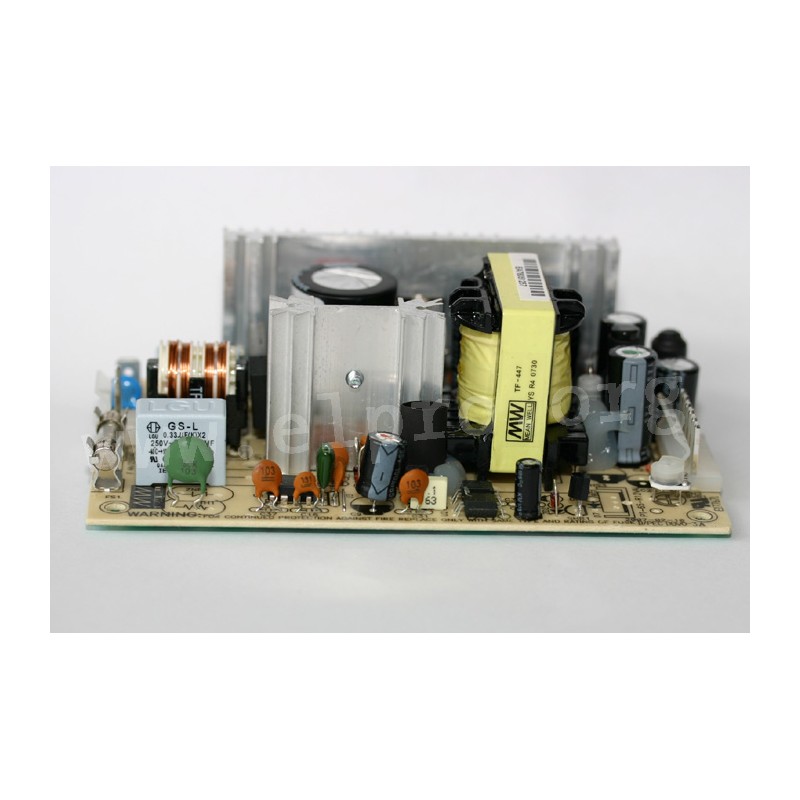

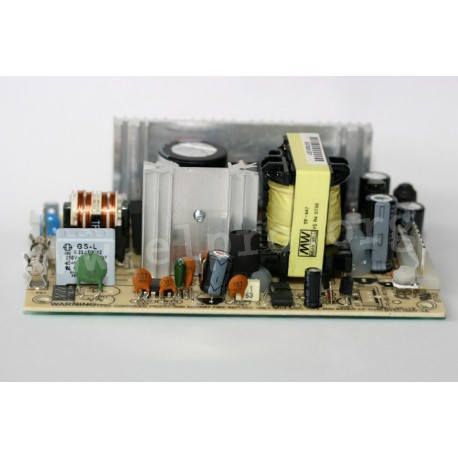

PSAI 61W 5V 12V

Mean Well power supply series PD-65 and PRD-65

Open frame type switching power supplies with 65W and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-65A, PD-65B, RPD-65C and RPD-65D.

  • dual output
  • output: 60 to 65,5W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 40A (PD_) resp. 50A (RPD_)
  • leakage current: <0,75mA (PD_) resp. <1mA (RPD_)
  • output voltage adjustment: +10/-5%
  • overload protection: 73 to 105W
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 240g
Meanwell PD-65 series

PSAI 61W 5V 12V

17910 PSAI 61W 5V 12V PD-65A PD-65A Mean Well power supply series PD-65 and PRD-65. Open frame type switching power supplies with 65W and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-65A, PD-65B, RPD-65C and RPD-65D. dual output output: 60 to 65,5W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 40A (PD_) resp. 50A (RPD_) leakage current: &lt;0,75mA (PD_) resp. &lt;1mA (RPD_) output voltage adjustment: +10/-5% overload protection: 73 to 105W withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 240g

Specifications

manufacturer
Manufacturer's name PD-65A
Output voltage [V] 5/12
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0,4...7/0,2...3,2
Output voltage tolerance: [%] ±4/±7
Output power [W] 61,1
Output rated current [A] 5,5/2,8
Output voltage adjustment [V] 4,75...5,5
Ripple [mV] 50/120
Data Sheet

Unit price

15,39 €

Volume discounts

Quantity Unit price
50 + 14,49 €

Stock: 64
Further delivery:
CW 12/2025
