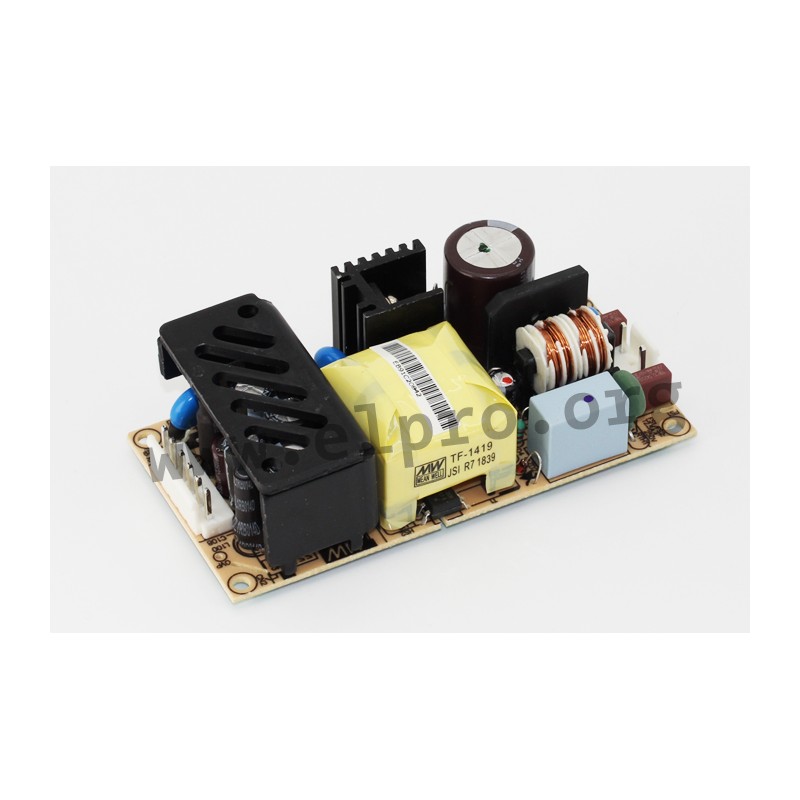

RPD-60B

Mean Well power supply series RPD-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPD-60A and RPD-60B.

  • dual output
  • output: 49 to 53,5W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +65°C
  • weight: 150g

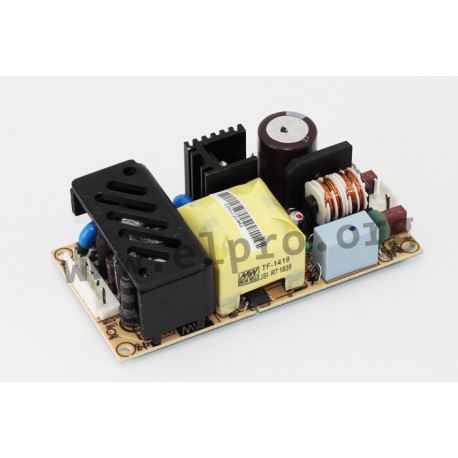

RPD-60B, Mean Well, output 60 watts, dual output, medical open frame

RPD-60B

111853 RPD-60B RPD-60B 4711287428567 Mean Well power supply series RPD-60. Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for&nbsp;medical technology&nbsp;applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;UL/EN62368-1, EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPD-60A and RPD-60B. dual output output: 49 to 53,5W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;150&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +65&deg;C weight: 150g

Specifications

manufacturer
Manufacturer's name RPD-60B
GTIN 4711287428567
Output voltage [V] 5 / 24
Efficiency [%] 82
Output current range [A] 0,5...3,85 /...
Output voltage tolerance: [%] +3/-2 / +8/-4
Output power [W] 53,5
Ripple [mVp-p] 80 / 100
Data Sheet

Unit price

14,59 €

Volume discounts

Quantity Unit price
50 + 13,59 €

Stock: 43
Further delivery:
CW 12/2025
