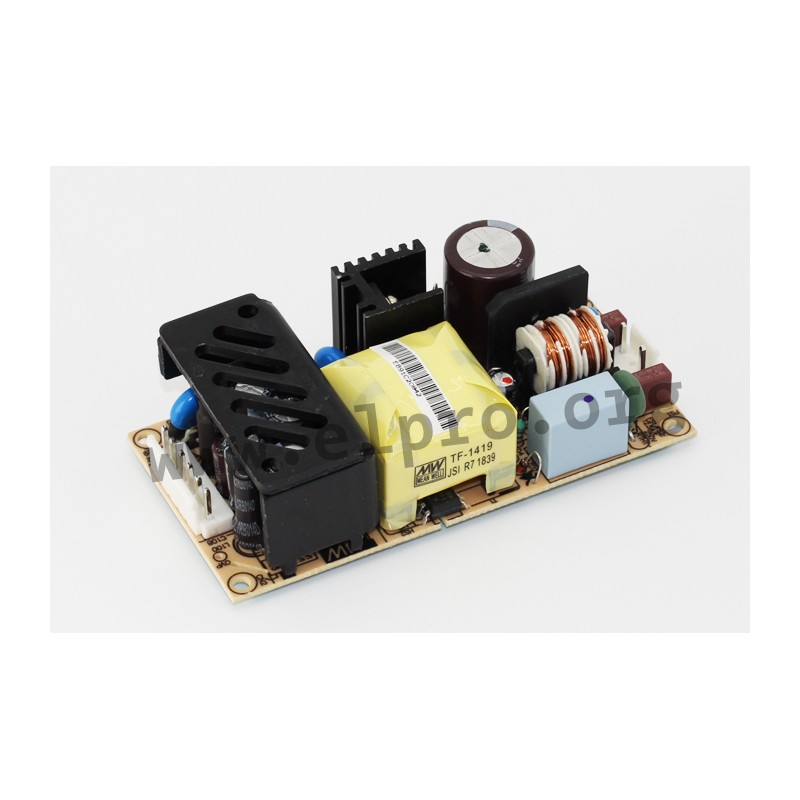

RPD-60A

Mean Well power supply series RPD-60

Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPD-60A and RPD-60B.

  • dual output
  • output: 49 to 53,5W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <150µA (earth) / <100µA (touch)
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +65°C
  • weight: 150g
RPD-60A, MeanWell, output 60 watts, dual output, medical open frame

RPD-60A

111852 RPD-60A RPD-60A 4711287428550 Mean Well power supply series RPD-60. Switching power supplies in a compact 4"x2" housing (open frame) with 60W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for&nbsp;medical technology&nbsp;applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;UL/EN62368-1, EN60601-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RPD-60A and RPD-60B. dual output output: 49 to 53,5W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;150&micro;A (earth) / &lt;100&micro;A (touch) overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +65&deg;C weight: 150g

Specifications

manufacturer
Manufacturer's name RPD-60A
GTIN 4711287428550
Output voltage [V] 5 / 12
Efficiency [%] 78
Output current range [A] 0,5...5,5 /...
Output voltage tolerance: [%] +3/-2 / ±6
Output power [W] 49
Ripple [mVp-p] 80
Data Sheet

Unit price

14,59 €

Volume discounts

Quantity Unit price
50 + 13,59 €

Stock: 4
Next incoming goods:
CW 09/2025
50 units

Further delivery:
CW 12/2025
