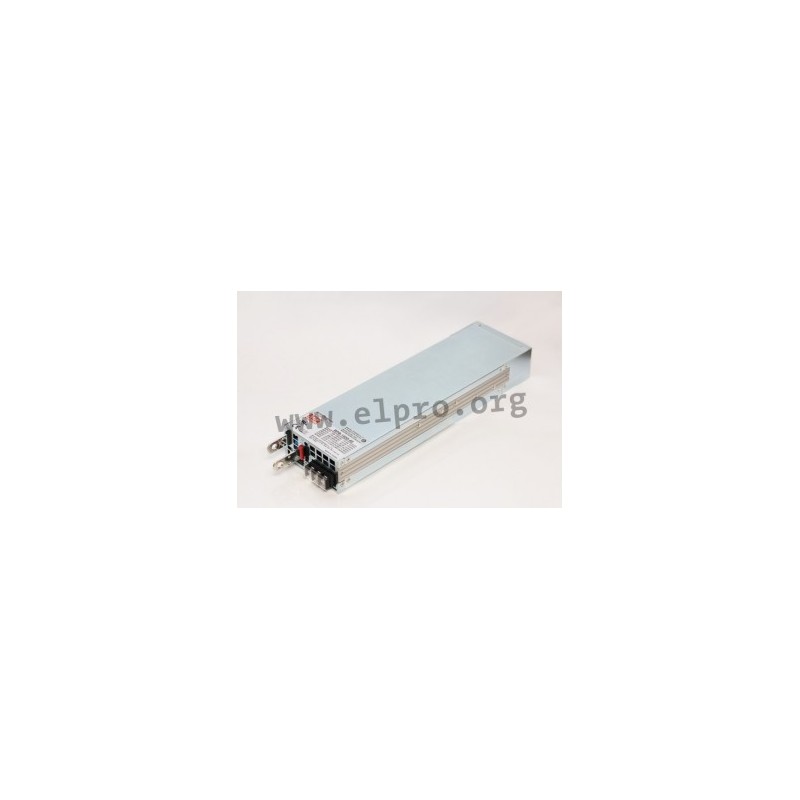

RPB-1600-24CAN

Mean Well charger series RPB-1600

Battery chargers for lead-acid/Li-ion batteries with 1600W, a universal input, an I²C interface, a PMBus protocol, a built-in DC fan, a three-coloured LED indicator, a programmable output voltage / output current and a built-in OR-ing FET. These devices have a parallel function, are suitable for rack mounting (1U) and comply with EN55032 class B, EN55032 class A, EN62368-1, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overvoltage, overtemperature, reverse current as well as short circuit. We offer the following types of this Mean Well series: RPB-1600-12, RPB-1600-24, RPB-1600-24CAN, RPB-1600-48, and RPB-1600-48CAN.

  • single output
  • output: 1600W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 300x85x41mm
  • weight: 1800g
RPB-1600-24CAN, Mean Well battery chargers, 1600W, for lead-acid and Li-ion batteries, parallel function, rack-mountable (1U), R

RPB-1600-24CAN

248611 RPB-1600-24CAN RPB-1600-24CAN Mean Well charger series RPB-1600. Battery chargers for lead-acid/Li-ion batteries with 1600W, a universal input, an I²C interface, a PMBus protocol, a built-in DC fan, a three-coloured LED indicator, a programmable output voltage / output current and a built-in OR-ing FET. These devices have a parallel function, are suitable for rack mounting (1U) and comply with EN55032 class B, EN55032 class A, EN62368-1, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overvoltage, overtemperature, reverse current as well as short circuit. We offer the following types of this Mean Well series: RPB-1600-12, RPB-1600-24, RPB-1600-24CAN, RPB-1600-48, and RPB-1600-48CAN. single output output: 1600W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C dimensions: 300x85x41mm weight: 1800g

Specifications

manufacturer
Manufacturer's name RPB-1600-24CAN
Charging voltage [V] 28,8
Float charge voltage [V] 27,6
Efficiency [%] 92,5
Output current [A] 55
Data Sheet

Unit price

452,39 €

Stock: 2
Further delivery:
CW 12/2025
