RID-50B

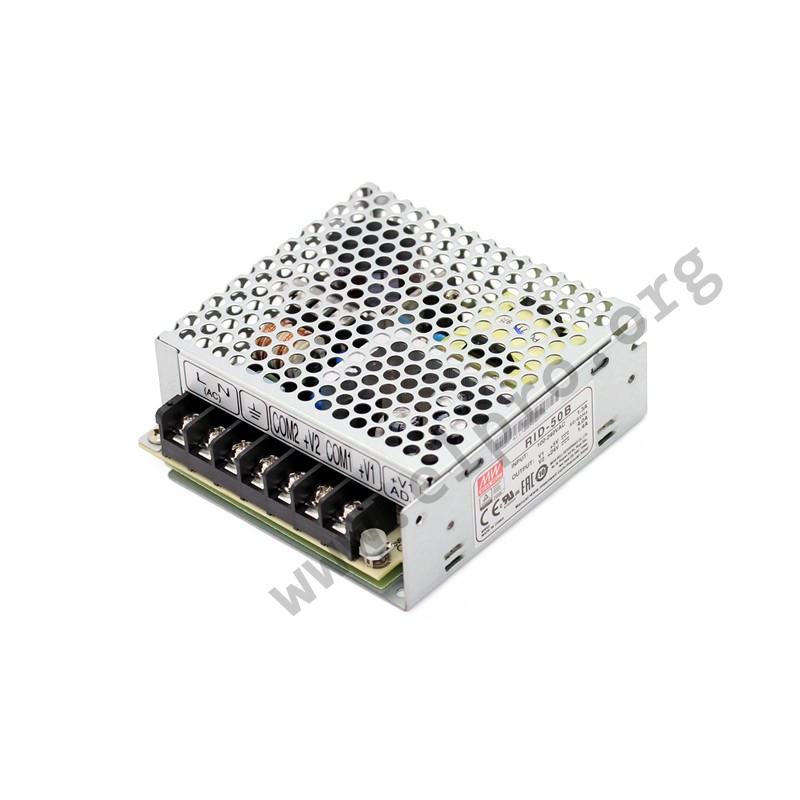

Mean Well power supply series RID-50

Switching power supplies in an enclosed case with 50W, screw terminals, a universal input and long life electrolytic capacitors. These devices have isolated outputs and are protected against short circuit, overvoltage as well as overload (auto recovery). They have a fanless design and comply with UL62368-1, EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RID-50A and RID-50B.

  • dual output
  • output: 53,6 to 54W
  • maximal input inrush current: 48A
  • maximal leakage current: <2mA
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

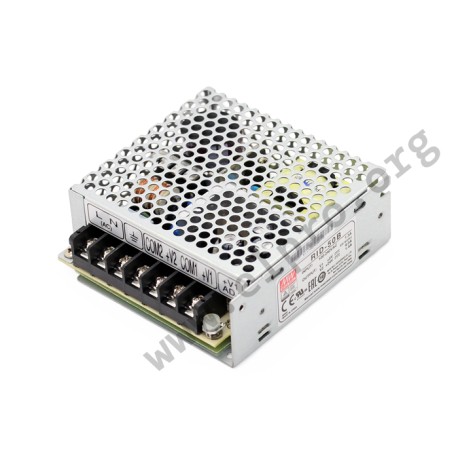

RID-50B, Mean Well switching power supplies, 50W, isolated output, dual output, RID-50 series

RID-50B

135745 RID-50B RID-50B 4711287434117 Mean Well power supply series RID-50. Switching power supplies in an enclosed case with 50W, screw terminals, a universal input and long life electrolytic capacitors. These devices have isolated outputs and are protected against short circuit, overvoltage as well as overload (auto recovery). They have a fanless design and comply with UL62368-1, EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RID-50A and RID-50B. dual output output: 53,6 to 54W maximal input inrush current: 48A maximal leakage current: &lt;2mA overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RID-50B
GTIN 4711287434117
Output voltage [V] 5/24
Efficiency [%] 79
Output current range [A] 0...4/0...1,3
Output voltage tolerance: [%] 2/8
Output power [W] 53,6
Ripple [mVp-p] 80/150
Data Sheet

Unit price

19,49 €

Volume discounts

Quantity Unit price
50 + 18,39 €

Stock: 15
Further delivery:
CW 12/2025
