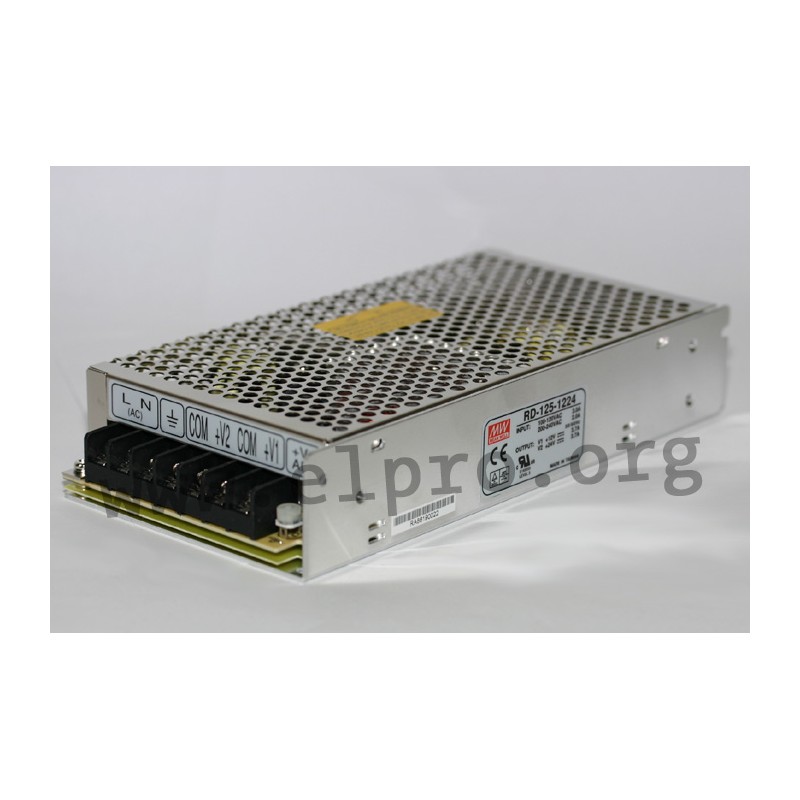

RID-125-1248

Mean Well power supply series RID-125

Switching power supplies in an enclosed housing with 125W, screw terminals and long life 105°C caps. These devices have a switch for selecting between 155V or 230V AC input voltage and are protected against short circuit, overload (auto recovery) as well as overvoltage. Furthermore, they have isolated outputs and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RID-125-1205, RID-125-1224, RID-125-1248, RID-125-2405 and RID-125-2448.

  • dual output
  • output: 125,4 to 144W
  • input voltage: 88 to 132 / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 2mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g
RID-125-1248, Mean Well switching power supplies, 125W, dual output, isolated outputs, RID-125 series

RID-125-1248

135752 RID-125-1248 RID-125-1248 4711287434186 Mean Well power supply series RID-125. Switching power supplies in an enclosed housing with 125W, screw terminals and long life 105°C caps. These devices have a switch for selecting between 155V or 230V AC input voltage and are protected against short circuit, overload (auto recovery) as well as overvoltage. Furthermore, they have isolated outputs and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RID-125-1205, RID-125-1224, RID-125-1248, RID-125-2405 and RID-125-2448. dual output output: 125,4 to 144W input voltage: 88 to 132 / 176 to 264V AC (47 to 63Hz), 248 to 373V DC maximal input inrush current: 40A maximal leakage current: 2mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 700g

Specifications

manufacturer
Manufacturer's name RID-125-1248
GTIN 4711287434186
Output voltage [V] 12/48
Efficiency [%] 85
Output current range [A] 0...7/0...2,5
Output voltage tolerance: [%] 2/8
Output power [W] 138
Ripple [mVp-p] 120/240
Data Sheet

Unit price

33,39 €

Volume discounts

Quantity Unit price
50 + 31,49 €

Stock: 9
Further delivery:
CW 16/2025
