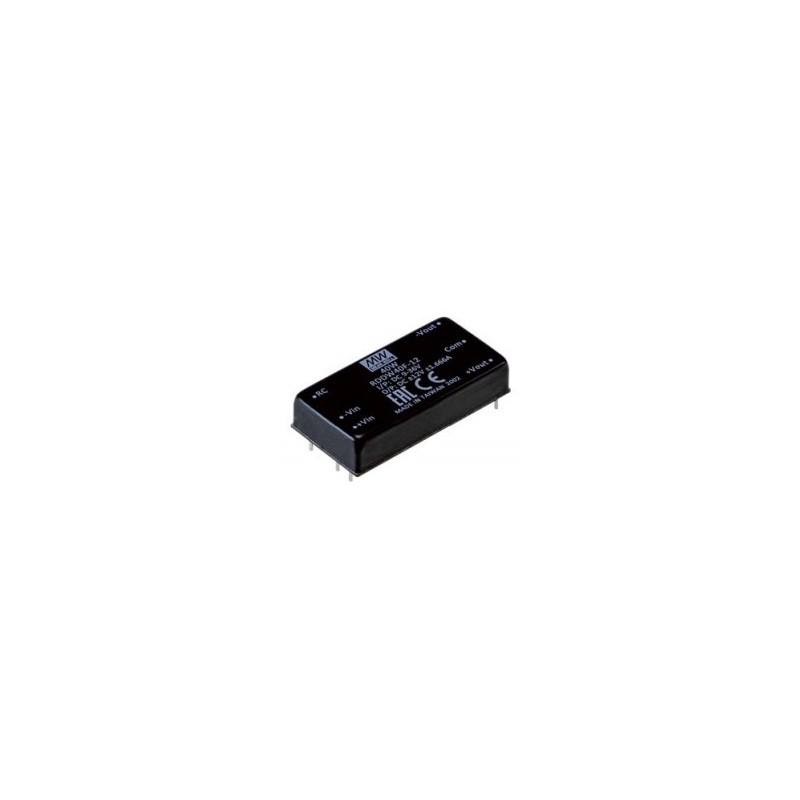

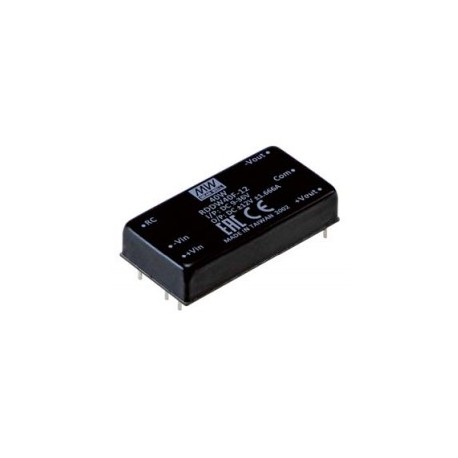

RDDW40F-12

Mean Well DC/DC converter series RDDW40

Converter modules in a 2x1 inch housing with 40W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting as well as for railway applications, do not require a minimum load and are protected against short circuit, overload, overvoltage as well as overtemperature. They have a built-in remote ON/OFF control and comply with EN55032, DE50155 as well as  IEC60571. We offer the following types of this Mean Well series: RDDW40F-12, RDDW40F-15, RDDW40G-12 and RDDW40G-15.

  • dual output
  • output: 40W
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 125mVpp
  • withstand voltage: 1600V DC
  • operating temperature: -40 to +85°C
  • dimensions: 50,8x25,4x10,5mm
  • weight: 37,6g
RDDW40F-12, Mean Well DC/DC converters, 40W, EN 50155 railway certificate, 2"x1", RDDW40 series

RDDW40F-12

235292 RDDW40F-12 RDDW40F-12 4711287474151 Mean Well DC/DC converter series RDDW40. Converter modules in a 2x1 inch housing with 40W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting as well as for railway applications, do not require a minimum load and are protected against short circuit, overload, overvoltage as well as overtemperature. They have a built-in remote ON/OFF control and comply with EN55032, DE50155 as well as  IEC60571. We offer the following types of this Mean Well series: RDDW40F-12, RDDW40F-15, RDDW40G-12 and RDDW40G-15. dual output output: 40W output voltage tolerance: ±1% maximal ripple and noise: 125mVpp withstand voltage: 1600V DC operating temperature: -40 to +85°C dimensions: 50,8x25,4x10,5mm weight: 37,6g

Specifications

manufacturer
Manufacturer's name RDDW40F-12
GTIN 4711287474151
Output voltage [V] ±12
Input voltage range [V] 9...36
Efficiency [%] 89
Output current range [A] ±0...1,666
Data Sheet

Unit price

37,69 €

Volume discounts

Quantity Unit price
50 + 36,39 €

Stock: 5
Further delivery:
CW 18/2025
