RD-65A

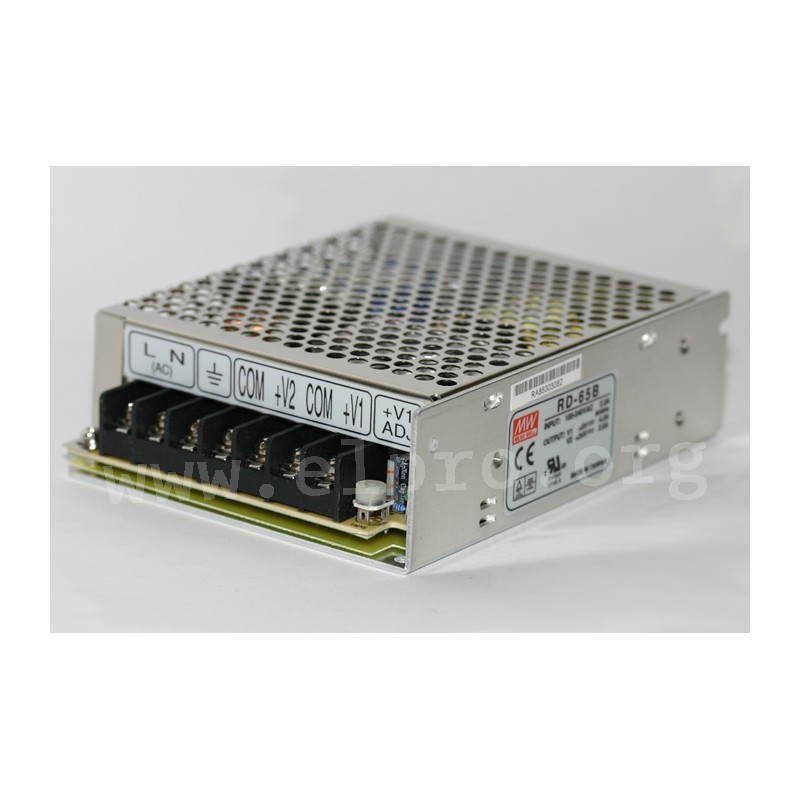

Mean Well power supply series RD

Switching power supplies in an enclosed housing with 65W, a universal input, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RD-65A and RD-65B.

  • dual output
  • output: 66 to 68W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g

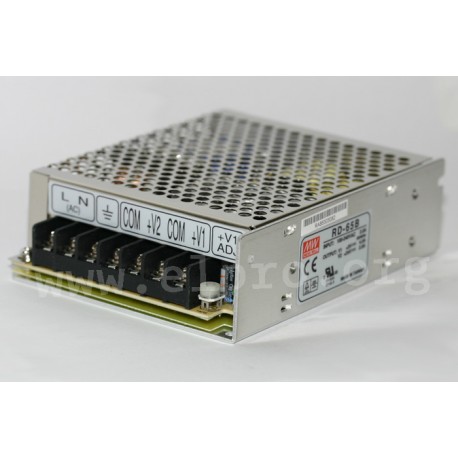

Meanwell series RD-65

RD-65A

32364 RD-65A RD-65A 4711287433981 Mean Well power supply series RD. Switching power supplies in an enclosed housing with 65W, a universal input, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: RD-65A and RD-65B. dual output output: 66 to 68W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 440g

Specifications

manufacturer
Manufacturer's name RD-65A
GTIN 4711287433981
Output voltage [V] 5/12
Phase 2 phase
Efficiency [%] 79
Output current range [A] 0,3...8/0,2...4
Output voltage tolerance: [%] 2/6
Output power [W] 66
Ripple [mVp-p] 80/120
Data Sheet

Unit price

15,29 €

Volume discounts

Quantity Unit price
50 + 14,39 €

Stock: 1012
Further delivery:
CW 16/2025
