RD-50A

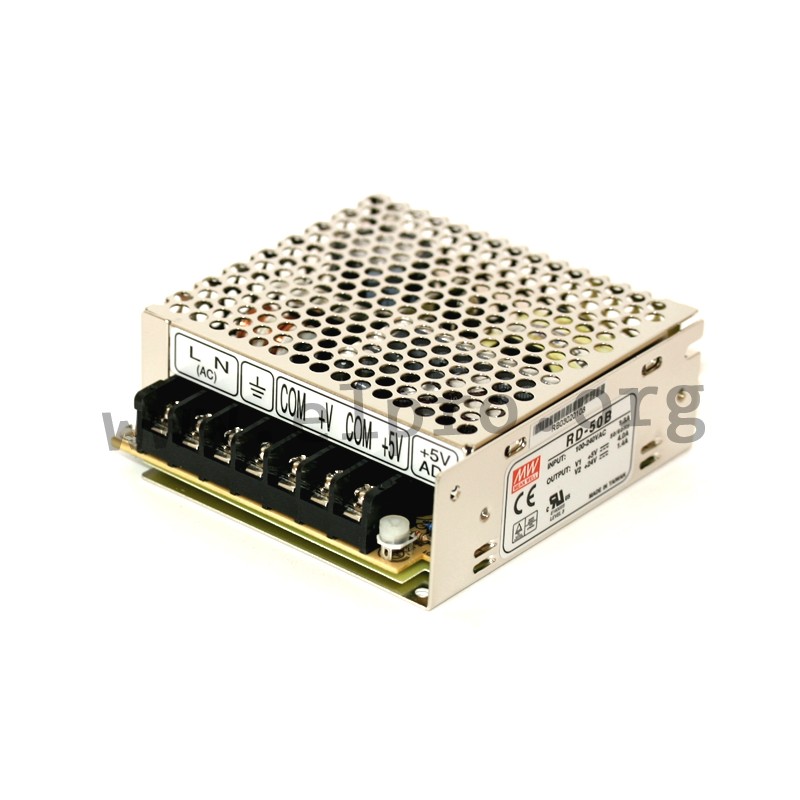

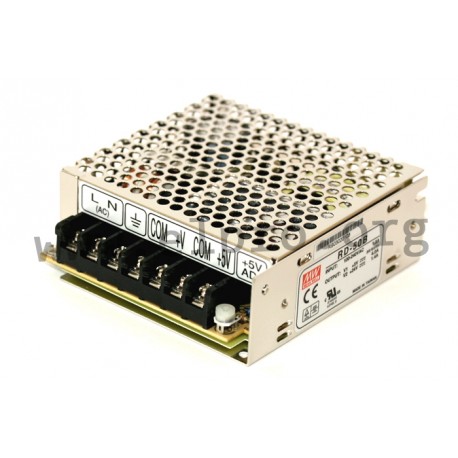

Mean Well power supply series RD-50

Switching power supplies in an enclosed housing with 50W, a dual output, a universal input and screw terminals. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-50A and RD-50B.

  • dual output
  • output: 53,6 to 54W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 33A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

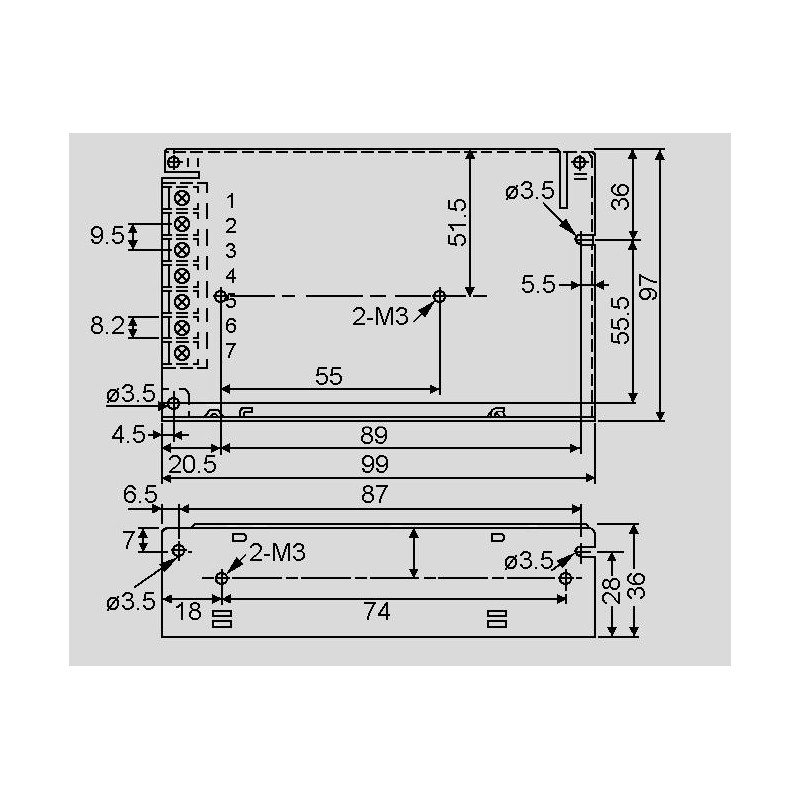

dimensions and terminal pin assignment

RD-50A

32350 RD-50A RD-50A 4711287433967 Mean Well power supply series RD-50. Switching power supplies in an enclosed housing with 50W, a dual output, a universal input and screw terminals. These devices have long life caps (105°C) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-50A and RD-50B. dual output output: 53,6 to 54W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 33A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RD-50A
GTIN 4711287433967
Output voltage [V] 5/12
Phase 2 phase
Efficiency [%] 79
Output current range [A] 0,3...6/0,3...3
Output voltage tolerance: [%] 2/7
Output power [W] 54
Ripple [mVp-p] 80/120
Data Sheet

Unit price

13,69 €

Volume discounts

Quantity Unit price
50 + 12,89 €

Stock: 3077
