RD-125-1248

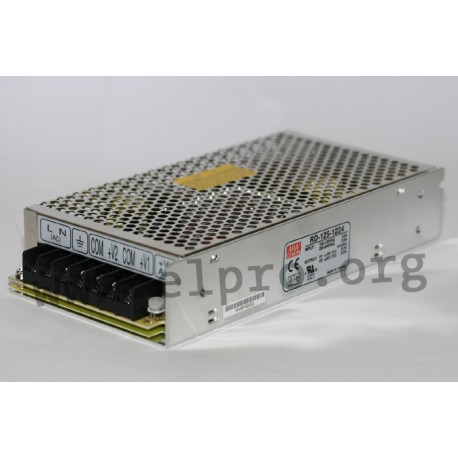

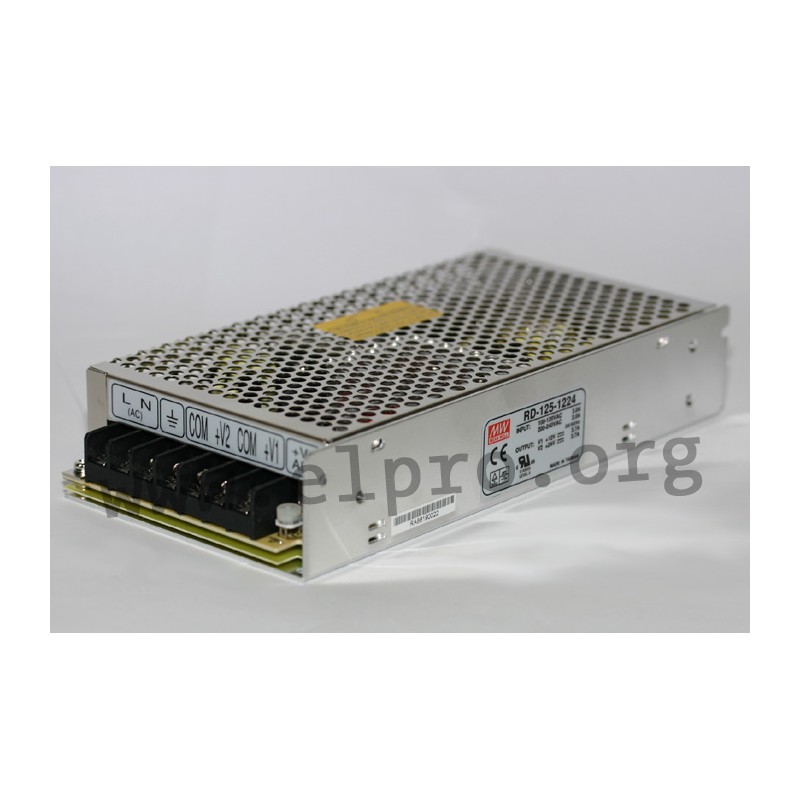

Mean Well power supply series RD-125

Switching power supplies in an enclosed housing with 125W, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range (115V/230V) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-125A, RD-125B, RD-125-1224, RD-125-2412, RD-125-1248, RD-125-4812, RD-125-2448 and RD-125-4824.

  • dual output
  • output: 130,9 to 144W
  • input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g
RD-125-1248

RD-125-1248

32373 RD-125-1248 RD-125-1248 4711287434032 Mean Well power supply series RD-125. Switching power supplies in an enclosed housing with 125W, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range (115V/230V) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-125A, RD-125B, RD-125-1224, RD-125-2412, RD-125-1248, RD-125-4812, RD-125-2448 and RD-125-4824. dual output output: 130,9 to 144W input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 700g

Specifications

manufacturer
Manufacturer's name RD-125-1248
GTIN 4711287434032
Output voltage [V] 12/48
Phase 2 phase
Efficiency [%] 86
Output current range [A] 1...7/0,2...2,5
Output voltage tolerance: [%] 2/ +8/-5
Output power [W] 138
Ripple [mVp-p] 120/240
