RD-125-2412

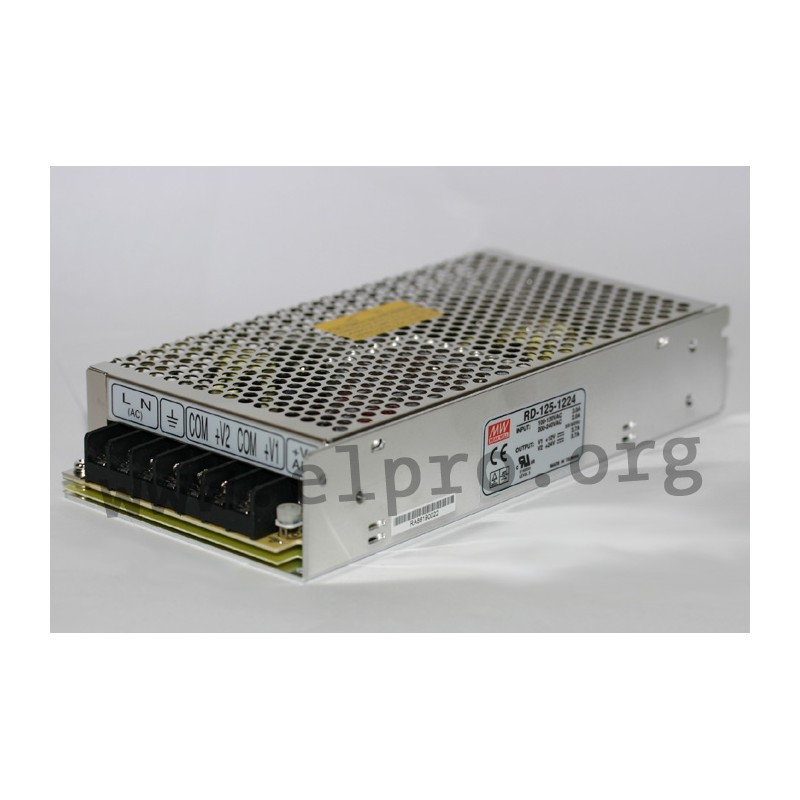

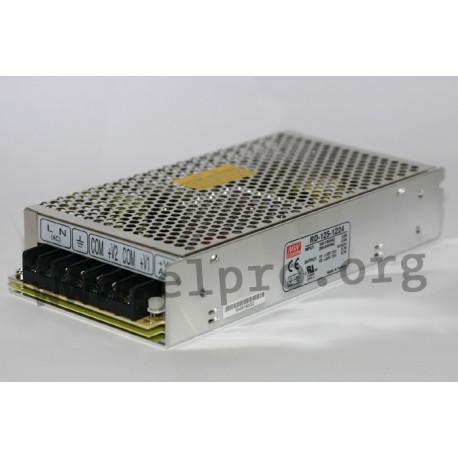

Mean Well power supply series RD-125

Switching power supplies in an enclosed housing with 125W, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range (115V/230V) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-125A, RD-125B, RD-125-1224, RD-125-2412, RD-125-1248, RD-125-4812, RD-125-2448 and RD-125-4824.

  • dual output
  • output: 130,9 to 144W
  • input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g
RD-125-2412

RD-125-2412

32369 RD-125-2412 RD-125-2412 4711287434049 Mean Well power supply series RD-125. Switching power supplies in an enclosed housing with 125W, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range (115V/230V) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-125A, RD-125B, RD-125-1224, RD-125-2412, RD-125-1248, RD-125-4812, RD-125-2448 and RD-125-4824. dual output output: 130,9 to 144W input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 700g

Specifications

manufacturer
Manufacturer's name RD-125-2412
GTIN 4711287434049
Output voltage [V] 24/12
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0,5...5/1...7
Output voltage tolerance: [%] 2/10
Output power [W] 133,2
Ripple [mVp-p] 200/120
Data Sheet

Unit price

27,39 €

Volume discounts

Quantity Unit price
50 + 25,89 €

Stock: 25
Next incoming goods:
CW 07/2025
60 units

Further delivery:
CW 12/2025
