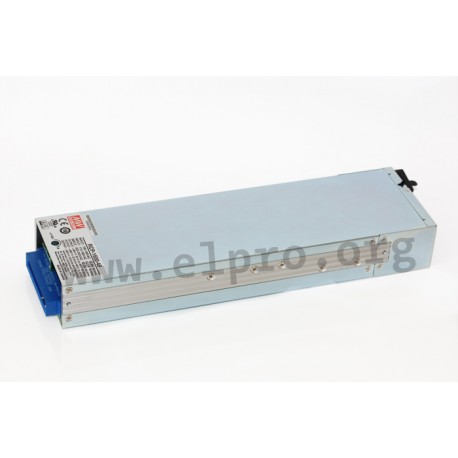

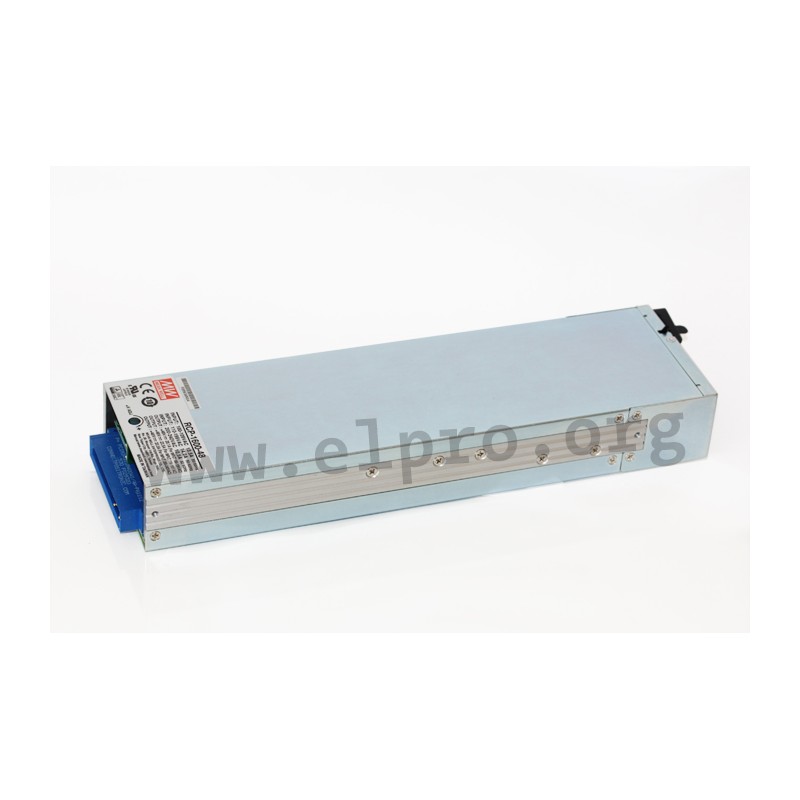

RCP-1600-24

Mean Well power supply series RCP-1600

Switching power supplies in an enclosed housing with 1600W, a built-in remote ON/OFF control, an AC OK / DC OK signal, a fan, a built-in auxiliary power, a hot swap function, a built-in remote sense function, a universal input, a built-in ORing diode, a low profile (1U) and a parallel function. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 8000W (5 units) in a 19-inch rack and comply with UL/EN60950-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the types RCP-1600-12, RCP-1600-24 and RCP-1600-48 of this Mean Well series as well as the matching 19" racks RHP-1UI-A and RHP-1UT-A.

  • single output
  • output: 1500 to 1608W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1,5mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 1870g
RCP-1600 series

RCP-1600-24

108239 RCP-1600-24 RCP-1600-24 4711232761039 Mean Well power supply series RCP-1600. Switching power&nbsp;supplies in an enclosed&nbsp;housing with 1600W, a&nbsp;built-in remote ON/OFF control, an AC OK / DC OK signal, a fan, a&nbsp;built-in auxiliary power, a&nbsp;hot swap function, a built-in remote sense function, a universal input, a&nbsp;built-in ORing diode, a low profile (1U) and a parallel function. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 8000W (5 units) in a 19-inch rack and comply with&nbsp;UL/EN60950-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A.&nbsp;We offer the types&nbsp;RCP-1600-12, RCP-1600-24 and RCP-1600-48 of this Mean Well&nbsp;series as well as the matching 19" racks RHP-1UI-A and RHP-1UT-A. single output output: 1500 to 1608W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;1,5mA overload protection: 105 to 115% withstand voltage&nbsp;I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70&deg;C weight: 1870g

Specifications

manufacturer
Manufacturer's name RCP-1600-24
GTIN 4711232761039
Output voltage [V] 24
Efficiency [%] 91
Output current range [A] 0...67
Output voltage tolerance: [%] 1
Output power [W] 1608
Ripple [mVp-p] 200
Data Sheet

Unit price

453,79 €

Stock: 13
Further delivery:
CW 16/2025
