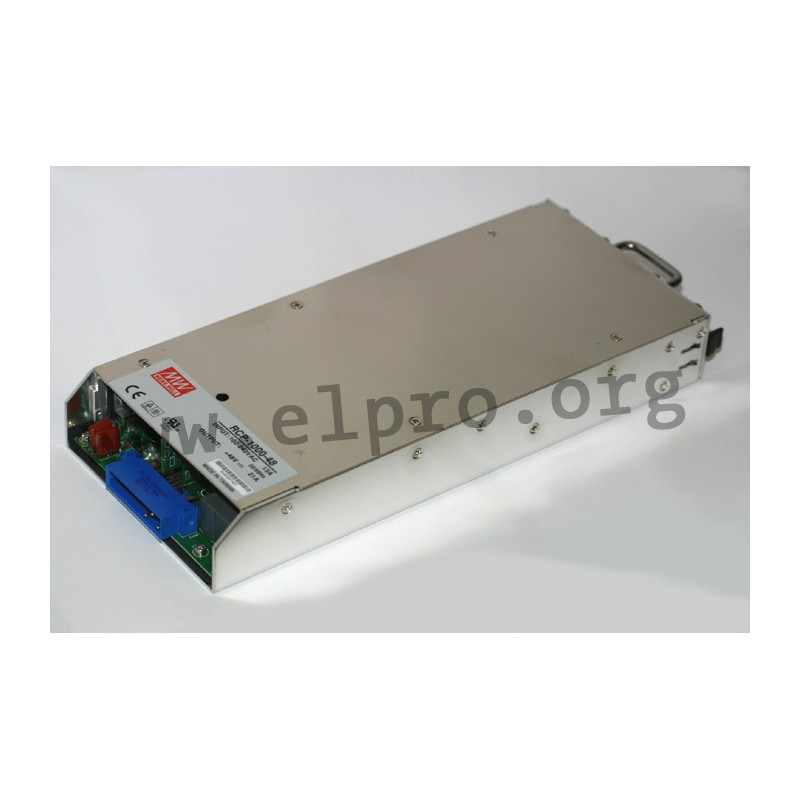

RCP-1000-24

Mean Well power supply series RCP-1000

Switching power supplies in an enclosed housing with 1000W, a fan, a universal input, a parallel function, a hot swap function, an internal ORing diode and a low profile (1U). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 3000W (3 units) in a 19-inch rack and comply with UL/EN60950-1 as well as EN55032 class B. We offer the types RCP-1000-12, RCP-1000-24 and RCP-1000-48 of this Mean Well series as well as the matching 19" racks RCP-1UI and RCP-1UT and the matching control/monitor unit RCP-MU.

  • single output
  • output: 720 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <1,1mA
  • output voltage adjustment: ±3%
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 700V AC
  • operating temperature: -20 to +60°C
  • weight: 1910g

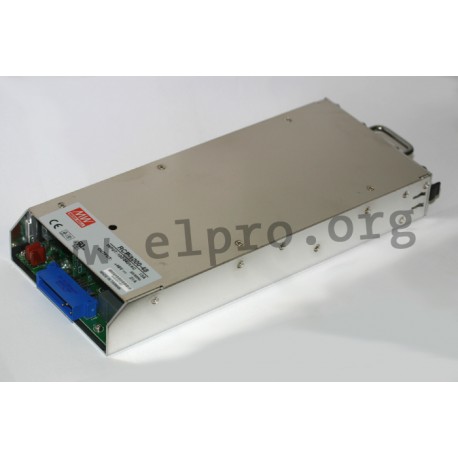

Mean Well RCP-1000 series

RCP-1000-24

29369 RCP-1000-24 RCP-1000-24 4711232760971 Mean Well power supply series RCP-1000. Switching power supplies in an enclosed housing with 1000W, a fan, a universal input, a parallel function, a hot swap function, an internal ORing diode and a low profile (1U).&nbsp;These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They&nbsp;are suitable for an active current sharing of up to 3000W (3 units) in a 19-inch rack and comply with&nbsp;UL/EN60950-1 as well as EN55032 class B.&nbsp;We&nbsp;offer the types&nbsp;RCP-1000-12,&nbsp;RCP-1000-24 and&nbsp;RCP-1000-48 of this Mean Well series as well as the matching 19" racks RCP-1UI and&nbsp;RCP-1UT and the matching control/monitor unit&nbsp;RCP-MU. single output output: 720 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;1,1mA output voltage adjustment:&nbsp;&plusmn;3% overload protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 700V AC operating temperature: -20 to +60&deg;C weight: 1910g

Specifications

manufacturer
Manufacturer's name RCP-1000-24
GTIN 4711232760971
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...40
Output voltage tolerance: [%] +/- 1
Output power [W] 960
Output rated current [A] 40
Output voltage adjustment [V] 23,2...24,8
Ripple [mV] 150
Data Sheet

Unit price

284,59 €

Volume discounts

Quantity Unit price
50 + 275,09 €

Stock: 25
Further delivery:
CW 12/2025
