QP-150-3A

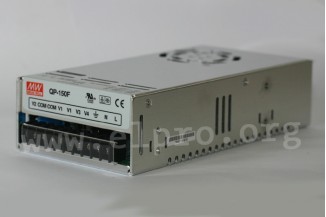

Mean Well power supply series QP-150

Switching power supplies in an enclosed housing with 150W, a universal input, a quad output and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in DC fan for cooling and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: QP-150-3A, QP-150-3B, QP-150-3D, QP-150D, QP-150F, QP-150B, QP-150C and QP-150-3.

  • quad output
  • output: 152 to 153,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <3,5mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 930g

QP-150-3A

QP-150-3A

244520 QP-150-3A QP-150-3A 4711287435398 Mean Well power supply series QP-150. Switching power supplies in an enclosed housing with 150W, a universal input, a quad output and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in DC fan for cooling and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: QP-150-3A, QP-150-3B, QP-150-3D, QP-150D, QP-150F, QP-150B, QP-150C and QP-150-3. quad output output: 152 to 153,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;3,5mA output voltage adjustment: -5/+10% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 930g

Specifications

manufacturer
Manufacturer's name QP-150-3A
GTIN 4711287435398
Output voltage [V] 5/3,3/12/-5
Phase 2 phase
Efficiency [%] 73
Output current range [A] 3...15/0...1...
Output voltage tolerance: [%] 3/3/6/5
Output power [W] 146
Ripple [mVp-p] 100/100/150/150
Data Sheet

Unit price

82,09 €

Stock: 0
Further delivery:
CW 12/2025
