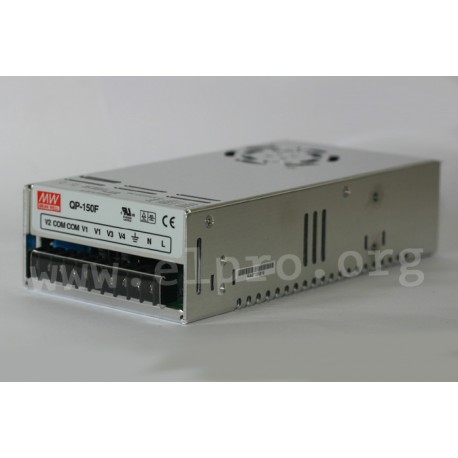

PSAIGP 150W 5V12V24V-12V

Mean Well power supply series QP-150

Switching power supplies in an enclosed housing with 150W, a universal input, a quad output and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in DC fan for cooling and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: QP-150-3A, QP-150-3B, QP-150-3D, QP-150D, QP-150F, QP-150B, QP-150C and QP-150-3.

  • quad output
  • output: 152 to 153,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <3,5mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 930g
PSAIGP 150W 5V12V24V-12V

PSAIGP 150W 5V12V24V-12V

18044 PSAIGP 150W 5V12V24V-12V QP-150D QP-150D Mean Well power supply series QP-150. Switching power supplies in an enclosed housing with 150W, a universal input, a quad output and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in DC fan for cooling and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: QP-150-3A, QP-150-3B, QP-150-3D, QP-150D, QP-150F, QP-150B, QP-150C and QP-150-3. quad output output: 152 to 153,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;3,5mA output voltage adjustment: -5/+10% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 930g

Specifications

manufacturer
Manufacturer's name QP-150D
Output voltage [V] 5/12/24/-12
Phase 2 phase
Efficiency [%] 78
Output current range [A] 3...15/0...5...
Output voltage tolerance: [%] 3/3/6/5
Output power [W] 153,2
Ripple [mVp-p] 120/150/200/150
Data Sheet

Unit price

78,59 €

Volume discounts

Quantity Unit price
50 + 75,99 €

Stock: 77
Further delivery:
CW 16/2025
