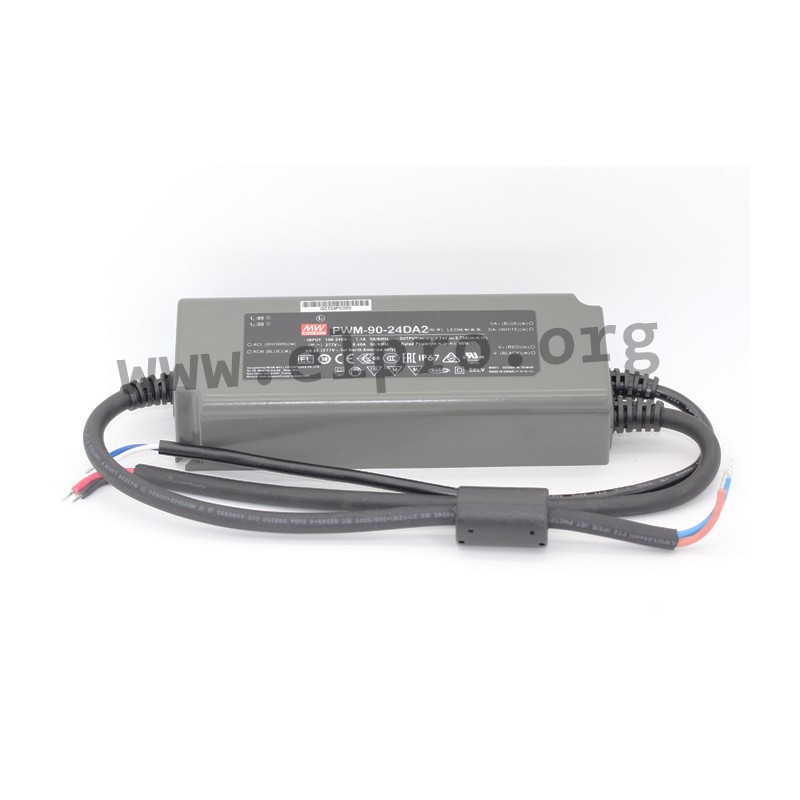

PWM-90-24DA2

Mean Well LED driver series PWM-90

LED drivers in a plastic housing (IP67) with a DALI (PWM-90_DA) resp. a DALI 2.0 interface (PWM-90_DA2), a PWM style output, 90W and a universal input. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13 as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-90-12DA, PWM-90-12DA2, PWM-90-24DA, PWM-90-24DA2 and PWM-90-48DA2.

  • single output
  • output: 90 to 90,24W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: 171x63x37,5mm
  • weight: 770g

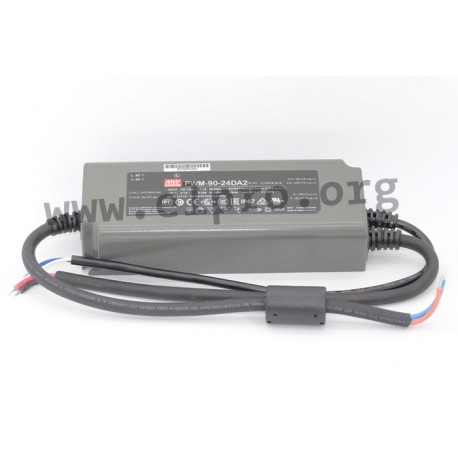

PWM-90-24DA2, Mean Well LED drivers, 90W, IP67, PWM output voltage, DALI interface, PWM-90 series

PWM-90-24DA2

236158 PWM-90-24DA2 PWM-90-24DA2 4711287460000 Mean Well LED driver series PWM-90. LED drivers in a plastic housing (IP67) with a DALI (PWM-90_DA) resp. a DALI 2.0 interface (PWM-90_DA2), a PWM style output, 90W and a universal input. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13 as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-90-12DA, PWM-90-12DA2, PWM-90-24DA, PWM-90-24DA2 and PWM-90-48DA2. single output output: 90 to 90,24W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C dimensions: 171x63x37,5mm weight: 770g

Specifications

manufacturer
Manufacturer's name PWM-90-24DA2
GTIN 4711287460000
Output voltage [V] 24
Efficiency [%] 90,5
Output current [A] 3,75
Output power [W] 90
Data Sheet

Unit price

35,89 €

Volume discounts

Quantity Unit price
50 + 34,69 €

Stock: 0
Next incoming goods:
CW 12/2025
200 units

Further delivery:
CW 16/2025
