PWM-60-36

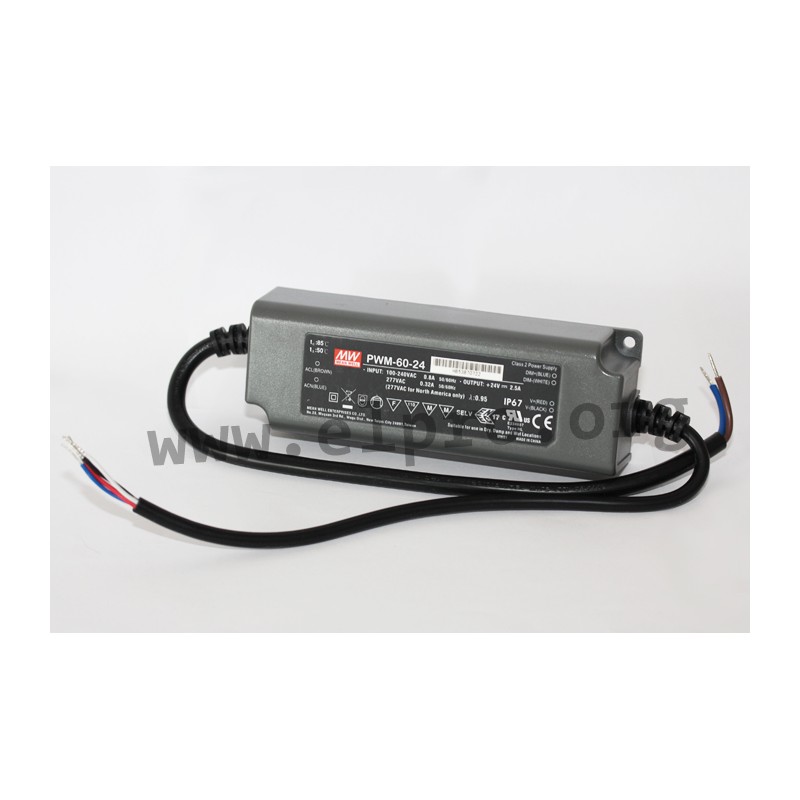

Mean Well LED driver series PWM-60

LED drivers in a plastic housing (IP67) with a universal input, 60W and a PWM style output. These devices are protected against overvoltage, short circuit, overload (auto recovery) as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PWM-60-12, PWM-60-24, PWM-60-36 and PWM-60-48.

  • single output
  • output: 60 to 60,12W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C

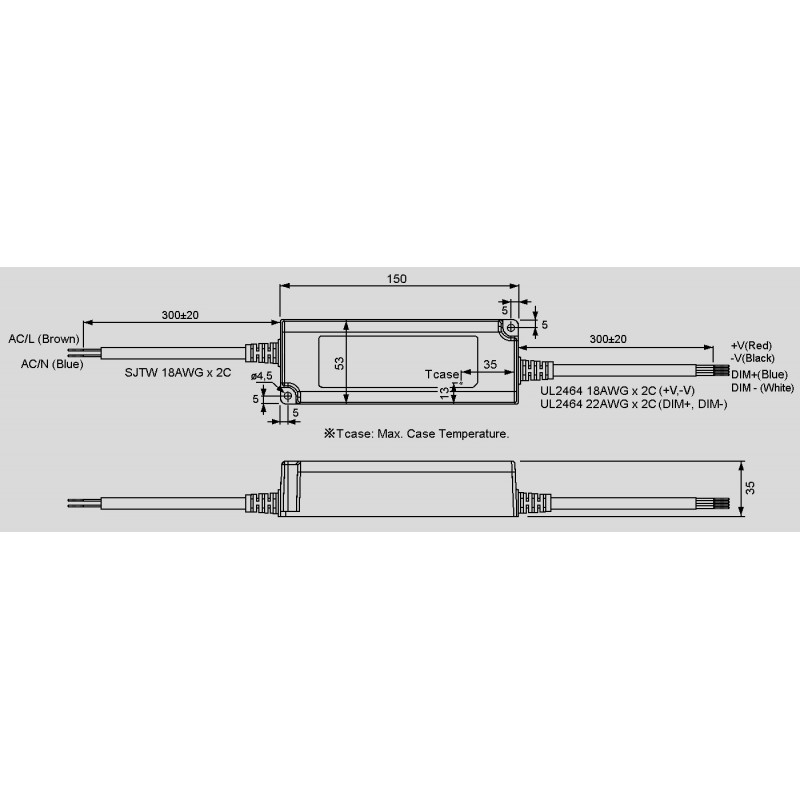

  • dimensions: 150x53x35mm
  • weight: 490g

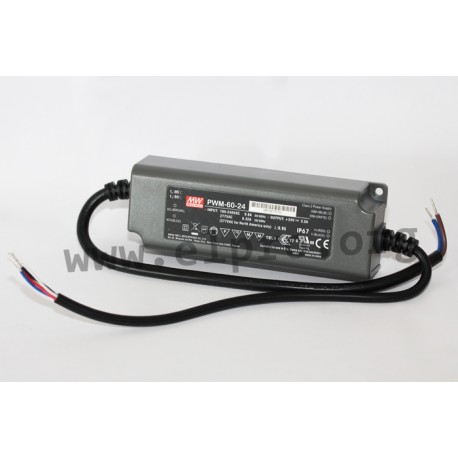

Meanwell PWM-60 series

PWM-60-36

45573 PWM-60-36 PWM-60-36 4711287459936 Mean Well LED driver series PWM-60. LED drivers in a plastic housing (IP67) with a universal input, 60W and a PWM style output. These devices are protected against overvoltage, short circuit, overload (auto recovery) as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PWM-60-12, PWM-60-24, PWM-60-36 and PWM-60-48. single output output: 60 to 60,12W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C dimensions: 150x53x35mm weight: 490g

Specifications

manufacturer
Manufacturer's name PWM-60-36
GTIN 4711287459936
Output voltage [V] 36
Output current range [mA] 1,67
Efficiency [%] 90
Output voltage tolerance: [%] 2
Output power [W] 60,12
Data Sheet

Unit price

25,69 €

Volume discounts

Quantity Unit price
50 + 24,19 €

Stock: 32
Further delivery:
CW 16/2025
