PWM-60-12DA

Mean Well LED driver series PWM-60

LED drivers in a plastic housing (IP67) with PWM output voltage, a DALI (PWM-_DA) resp. a DALI 2.0 interface (PWM-_DA2), a built-in active PFC function and universal input. These devices are protected against overload (pulsing hiccup shutdown, auto recovery), short circuit, overvoltage as well as overtemperature and are suitable for LED lighting as well as moving sign applications. They conform to EN61000-3-2 Class C, EN55015, EN61347-1, EN61347-2-13. We offer the following types of this Mean Well series: PWM-60-12DA, PWM-60-12DA2, PWM-60-24DA and PWM-60-24DA2.

  • single output
  • output: 60W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overload protection: 108 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • weight 490g

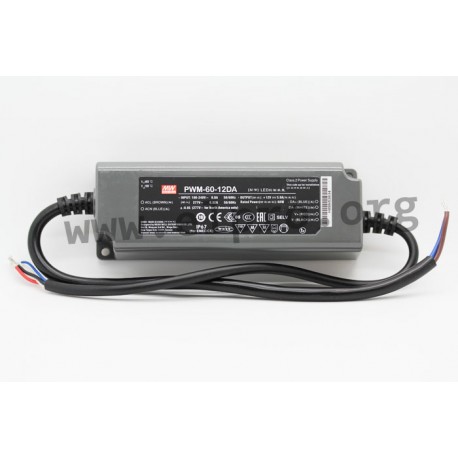

PWM-60-12DA, Mean Well LED switching power supplies, 60W, IP67, PWM output voltage, DALI interface, PWM-60 series

PWM-60-12DA

113262 PWM-60-12DA PWM-60-12DA 4711287459882 Mean Well LED driver series PWM-60. LED drivers in a plastic housing (IP67) with PWM output voltage, a DALI (PWM-_DA) resp. a DALI 2.0 interface (PWM-_DA2), a built-in active PFC function and universal input. These devices are protected against overload (pulsing hiccup shutdown, auto recovery), short circuit, overvoltage as well as overtemperature and are suitable for LED lighting as well as moving sign applications. They conform to EN61000-3-2 Class C, EN55015, EN61347-1, EN61347-2-13. We offer the following types of this Mean Well series: PWM-60-12DA, PWM-60-12DA2, PWM-60-24DA and PWM-60-24DA2. single output output: 60W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overload protection: 108 to 125% withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C weight 490g

Specifications

manufacturer
Manufacturer's name PWM-60-12DA
GTIN 4711287459882
Output voltage [V] 12
Efficiency [%] 86
Output current [A] 5
Output power [W] 60
Data Sheet

Unit price

27,29 €

Volume discounts

Quantity Unit price
50 + 25,59 €

Stock: 286
Next incoming goods:
CW 03/2025
210 units

Further delivery:
CW 11/2025
