PWM-60-24KN

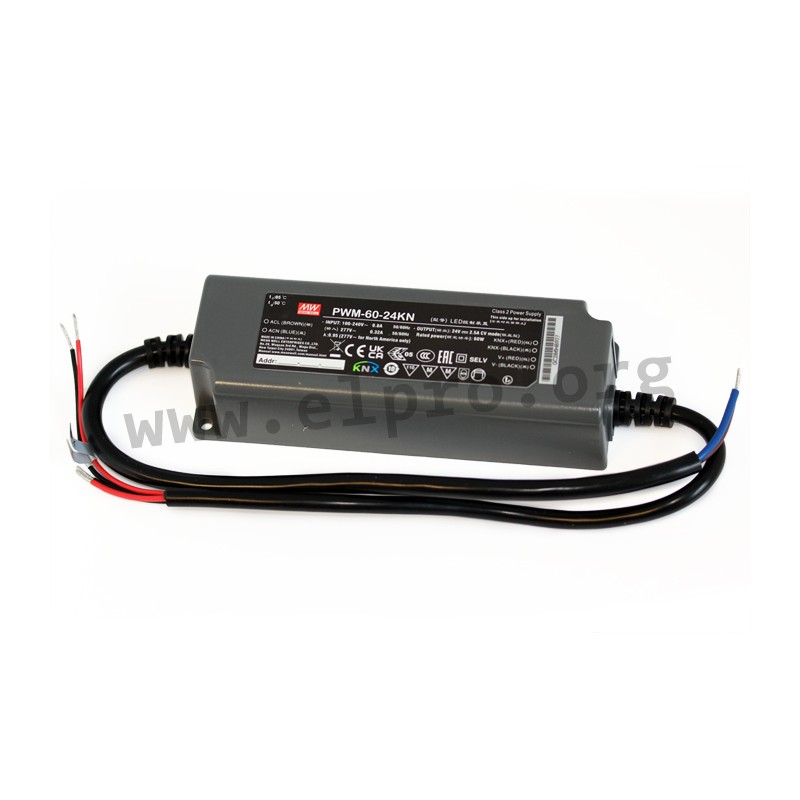

Mean Well LED driver series PWM-60-KN

LED drivers in a plastic case with 60W, a constant voltage, protection class II, a low no-load power consumption (<0,5W) and an integrated KNX control protocol. These devices have a PWM style output to maintain the colour temperature and the brightness as well as a built-in active PFC function and are protected against short circuit, overtemperature, overvoltage as well as overload (auto recovery). They are suitable for LED lighting applications, have a minimum dimming level of 0,5% and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The PWM output frequency is adjustable by ETS up to a maximum of 4kHz. We offer the following types of this Mean Well series: PWM-60-12KNX and PWM-60-24KNX.

  • single output
  • output: 60W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overload protection: 108 to 130%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -35 to +85°C
  • weight: 450g

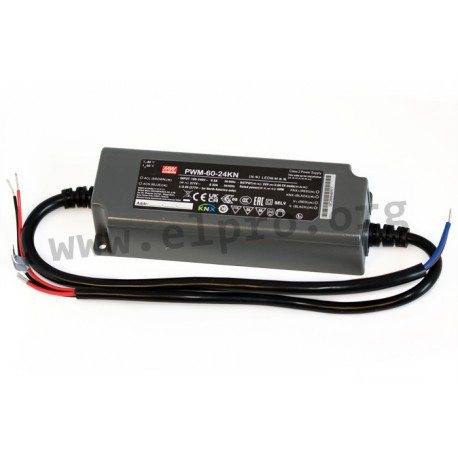

PWM-60-24KN, Mean Well LED drivers, 60W, KNX standard, PWM output voltage, PWM-60-KN series

PWM-60-24KN

137210 PWM-60-24KN PWM-60-24KN 4711287463315 Mean Well LED driver series PWM-60-KN. LED drivers in a plastic case with 60W, a constant voltage, protection class II, a low no-load power consumption (&lt;0,5W) and an integrated KNX control protocol. These devices have a PWM style output to maintain the colour temperature and the brightness as well as a built-in active PFC function and are protected against short circuit, overtemperature, overvoltage as well as overload (auto recovery). They are suitable for LED lighting applications, have a minimum dimming level of 0,5% and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The PWM output frequency is adjustable by ETS up to a maximum of 4kHz. We offer the following types of this Mean Well series: PWM-60-12KNX and PWM-60-24KNX. single output output: 60W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overload protection: 108 to 130% withstand voltage I/P-O/P: 3750V AC operating temperature: -35 to +85°C weight: 450g

Specifications

manufacturer
Manufacturer's name PWM-60-24KN
GTIN 4711287463315
Output voltage [V] 24
Efficiency [%] 89
Output current [A] 2,5
Output power [W] 60
Data Sheet

Unit price

40,39 €

Volume discounts

Quantity Unit price
50 + 39,09 €

Stock: 231
Next incoming goods:
CW 50/2024
210 units

Further delivery:
CW 12/2025
