PWM-200-24KN

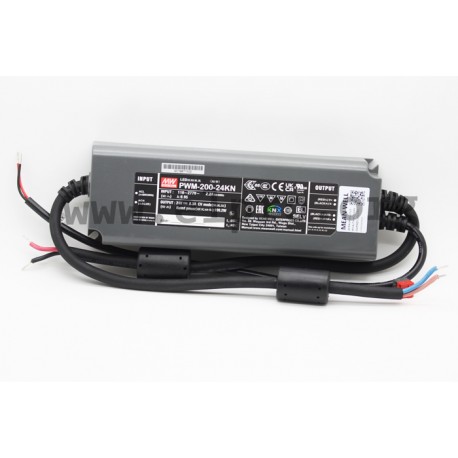

Mean Well LED driver series PWM-200KN

LED drivers in a plastic housing with 200W, protection class II and a constant voltage. These flickerfree devices have a built-in KNX interface, a PWM style output and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: PWM-200-12KN, PWM-200-24KN, PWM-200-36KN and PWM-200-48KN.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power consumption: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +80°C
  • connection type: stranded wire
  • cable length: 30cm
  • dimensions: 195x68x39,5mm
  • weight: 1030g
PWM-200-24KN, Mean Well LED drivers, 200W, KNX standard, PWM output voltage, PWM-200KN series

PWM-200-24KN

237720 PWM-200-24KN PWM-200-24KN 4711287463353 Mean Well LED driver series PWM-200KN. LED drivers in a plastic housing with 200W, protection class II and a constant voltage. These flickerfree devices have a built-in KNX interface, a PWM style output and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting&nbsp;applications and comply with&nbsp;UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as EN55015. We offer the&nbsp;following types of this Mean Well series:&nbsp;PWM-200-12KN,&nbsp;PWM-200-24KN,&nbsp;PWM-200-36KN and&nbsp;PWM-200-48KN. single output output:&nbsp;180 to 200,1W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A leakage current: 0,75mA no-load power consumption: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +80&deg;C connection type:&nbsp;stranded wire cable length: 30cm dimensions: 195x68x39,5mm weight: 1030g

Specifications

manufacturer
Manufacturer's name PWM-200-24KN
GTIN 4711287463353
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 8,3
Output power [W] 199,2
Data Sheet

Unit price

65,29 €

Volume discounts

Quantity Unit price
50 + 63,09 €

Stock: 0
Next incoming goods:
CW 50/2024
107 units

Further delivery:
CW 12/2025
