PWM-200-24

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a PWM output voltage, 200W and protection class II. These devices are protected against overvoltage, short circuit, overtemperature as well as overload and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-200-12, PWM-200-24, PWM-200-36 and PWM-200-48.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power: <0,5W
  • connection type: stranded wires
  • cable length: 30cm
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 195x68x39,5mm
  • weight: 1030g

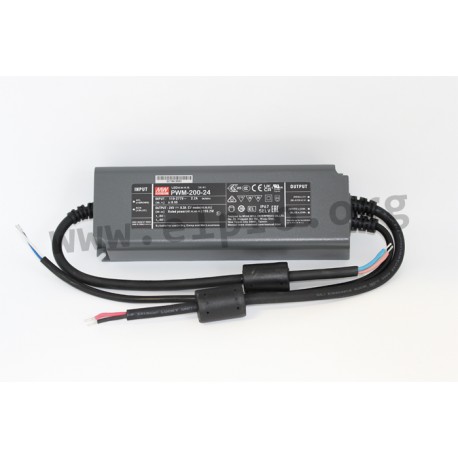

PWM-200-24, Mean Well LED drivers, 200W, IP67, PWM output voltage, PWM-200 series

PWM-200-24

237646 PWM-200-24 PWM-200-24 4711287460147 Mean Well LED driver series PWM-200. LED drivers in a plastic housing (IP67) with a PWM output voltage, 200W and protection class II. These devices are protected against overvoltage, short circuit, overtemperature as well as overload and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-200-12, PWM-200-24, PWM-200-36 and PWM-200-48. single output output: 180 to 200,1W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC input current: 1,1A maximal input inrush current: 65A leakage current: 0,75mA no-load power: &lt;0,5W connection type: stranded wires cable length: 30cm withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 195x68x39,5mm weight: 1030g

Specifications

manufacturer
Manufacturer's name PWM-200-24
GTIN 4711287460147
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 8,3
Output power [W] 199,2
Data Sheet

Unit price

46,39 €

Volume discounts

Quantity Unit price
50 + 44,89 €

Stock: 0
Next incoming goods:
CW 04/2025
101 units

Further delivery:
CW 16/2025
