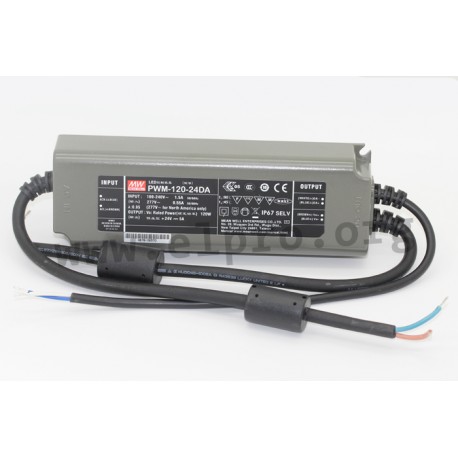

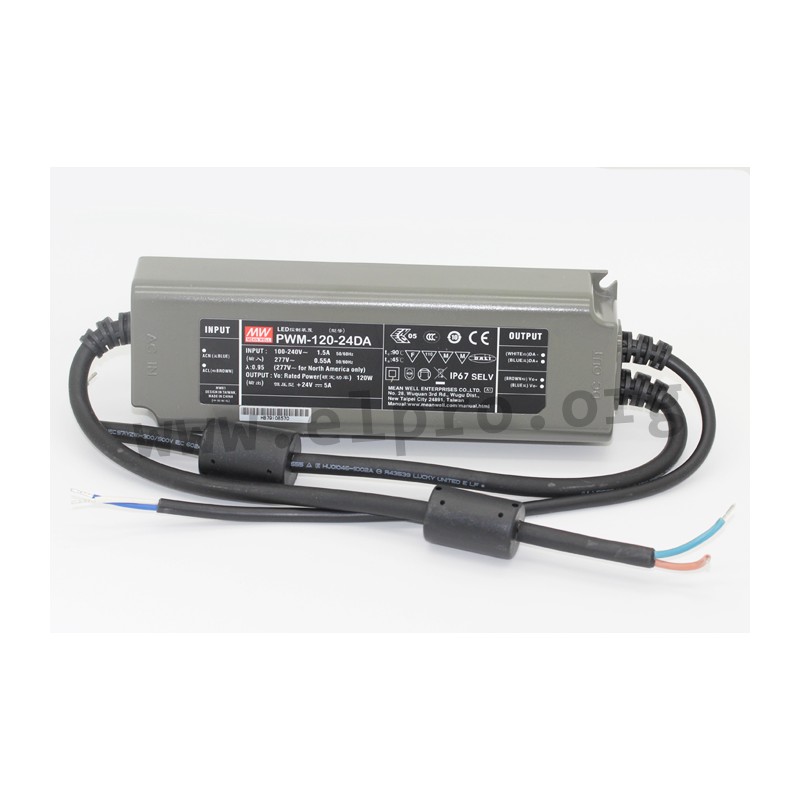

PWM-120-24DA

Mean Well LED driver series PWM-120

LED drivers in a plastic case (IP67) with a PWM output voltage, 120W, protection class II and a universal input. These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lightning applications. They are protected against overvoltage, short circuit, overtemperature as well as overload (auto recovery) and have a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer), a DALI (PWM-120_DA) resp. a DALI 2.0 interface (PWM-120_DA2) as well as a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12DA, PWM-120-12DA2, PWM-120-24DA and PWM-120-24DA2.

  • single output
  • output: 120W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C
  • weight: 970g
PWM-120-24DA

PWM-120-24DA

110274 PWM-120-24DA PWM-120-24DA 4711287460086 Mean Well LED driver series PWM-120. LED drivers in a plastic case (IP67) with a PWM output voltage, 120W, protection class II and a universal input. These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lightning applications. They are protected against overvoltage, short circuit, overtemperature as well as overload (auto recovery) and have a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer), a DALI (PWM-120_DA) resp. a DALI 2.0 interface (PWM-120_DA2) as well as a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12DA, PWM-120-12DA2, PWM-120-24DA and PWM-120-24DA2. single output output: 120W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90°C weight: 970g

Specifications

manufacturer
Manufacturer's name PWM-120-24DA
GTIN 4711287460086
Output voltage [V] 24
Efficiency [%] 90
Output current [A] 5
Output voltage tolerance: [%] 4
Output power [W] 120
Data Sheet

Unit price

37,99 €

Volume discounts

Quantity Unit price
50 + 37,09 €

Stock: 158
Next incoming goods:
CW 03/2025
510 units

Further delivery:
CW 11/2025
