PWM-120-36

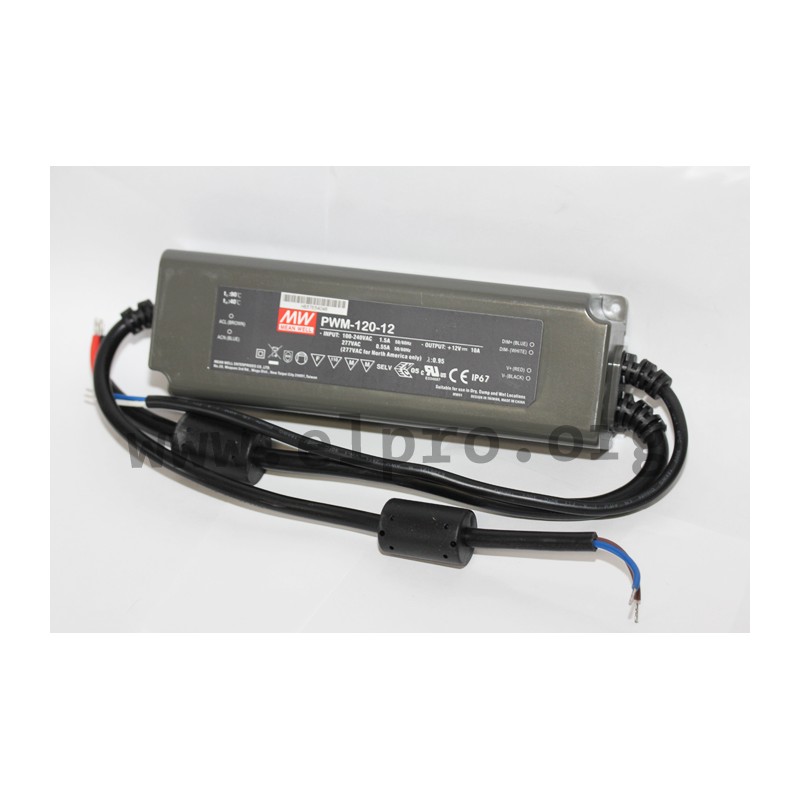

Mean Well LED driver series PWM-120

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (constant current adjustable 0 to 10V, 10V PWM, potentiometer), 120W, protection class II and a PWM output voltage. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12, PWM-120-24, PWM-120-36 and PWM-120-48.

  • single output
  • output: 120 to 122,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • no-load power: <0,5W
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C

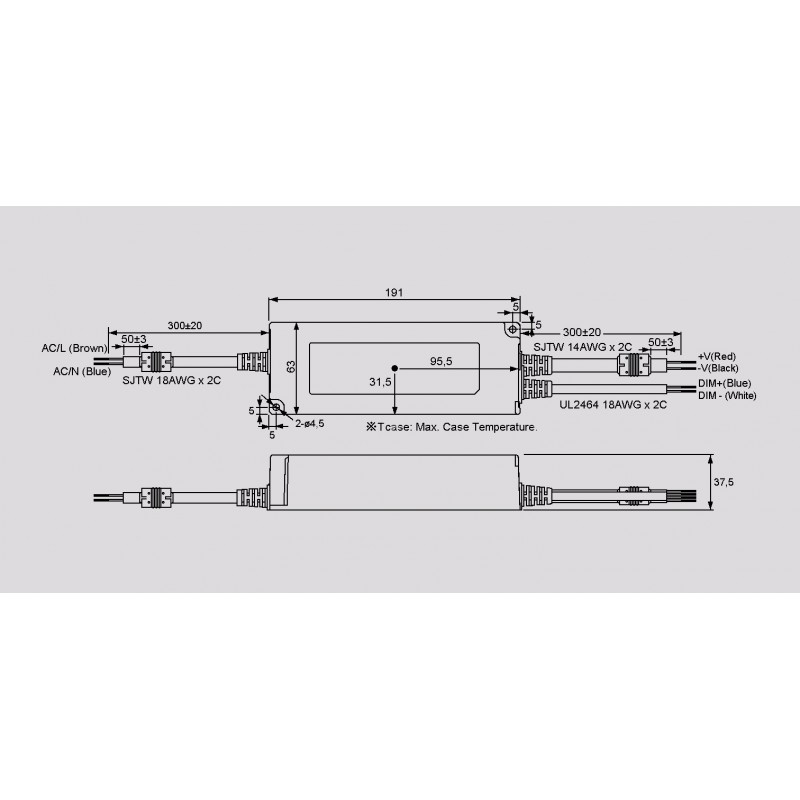

  • dimensions: 191x63x37,5mm
  • weight: 970g
Mean Well PWM-120 series

PWM-120-36

104648 PWM-120-36 PWM-120-36 4711287460109 Mean Well LED driver series PWM-120. LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (constant current adjustable 0 to 10V, 10V PWM, potentiometer), 120W, protection class II and a PWM output voltage. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12, PWM-120-24, PWM-120-36 and PWM-120-48. single output output: 120 to 122,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC no-load power: &lt;0,5W maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90°C dimensions: 191x63x37,5mm weight: 970g

Specifications

manufacturer
Manufacturer's name PWM-120-36
GTIN 4711287460109
Output voltage [V] 36
Efficiency [%] 90
Output current [A] 3,4
Output voltage tolerance: [%] 2
Output power [W] 122,4
Data Sheet

Unit price

38,19 €

Volume discounts

Quantity Unit price
50 + 36,99 €

Stock: 4
Further delivery:
CW 17/2025
