PWM-120-12

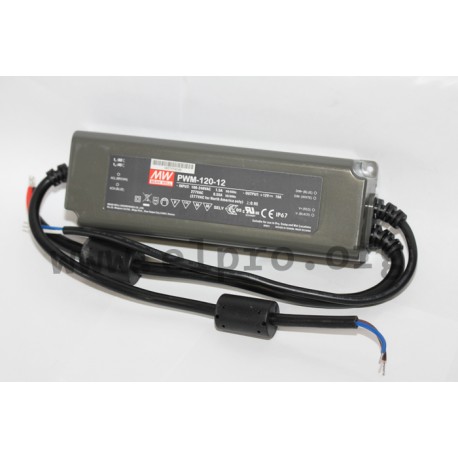

Mean Well LED driver series PWM-120

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (constant current adjustable 0 to 10V, 10V PWM, potentiometer), 120W, protection class II and a PWM output voltage. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12, PWM-120-24, PWM-120-36 and PWM-120-48.

  • single output
  • output: 120 to 122,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • no-load power: <0,5W
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C

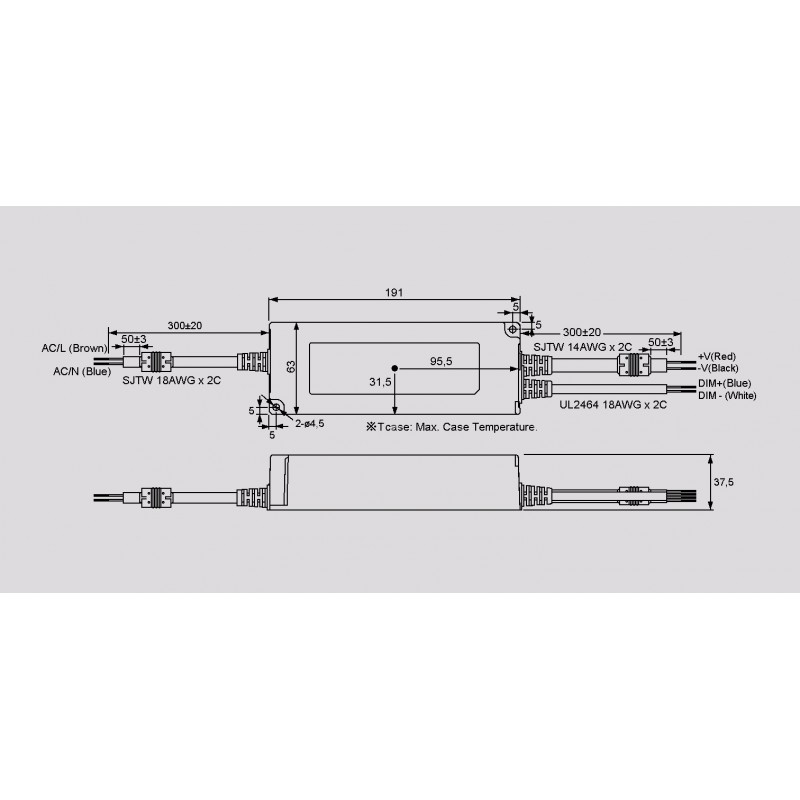

  • dimensions: 191x63x37,5mm
  • weight: 970g
Mean Well PWM-120 series

PWM-120-12

104646 PWM-120-12 PWM-120-12 4711287460048 Mean Well LED driver series PWM-120. LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (constant current adjustable 0 to 10V, 10V PWM, potentiometer), 120W, protection class II and a PWM output voltage. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12, PWM-120-24, PWM-120-36 and PWM-120-48. single output output: 120 to 122,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC no-load power: &lt;0,5W maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90°C dimensions: 191x63x37,5mm weight: 970g

Specifications

manufacturer
Manufacturer's name PWM-120-12
GTIN 4711287460048
Output voltage [V] 12
Efficiency [%] 88
Output current [A] 10
Output voltage tolerance: [%] 4
Output power [W] 120
Data Sheet

Unit price

38,19 €

Volume discounts

Quantity Unit price
50 + 36,99 €

Stock: 160
Next incoming goods:
CW 12/2025
105 units

Further delivery:
CW 16/2025
