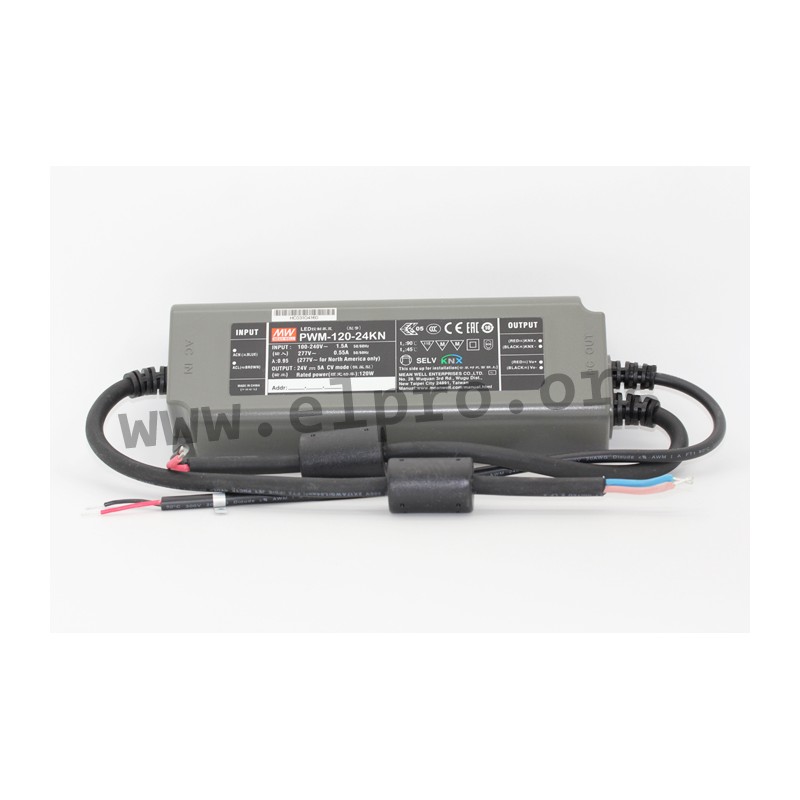

PWM-120-24KN

Mean Well LED driver series PWM-120-KN

LED drivers in a plastic case with 120W, a constant voltage, protection class II, a low no-load power consumption and an integrated KNX control protocol. These devices have a minimal dimming level of 0,5%, a PWM style output to maintain the colour temperature and the brightness as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The PWM output frequency is adjustable by ETS up to a maximum of 4kHz. We offer the following types of this Mean Well series: PWM-120-12KNX and PWM-120-24KNX.

  • single output
  • output: 120W
  • input voltage: 90 to 305V AC (47 bis 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • maximal leakage current: <0,25mA
  • overload protection: 108 to 130%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C
  • weight: 800g

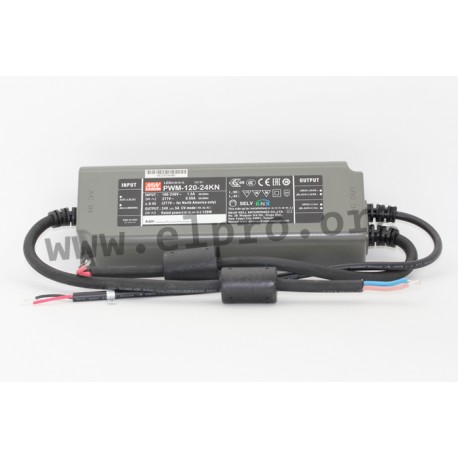

PWM-120-24KN, Mean Well LED drivers, 120W, KNX standard, PWM output voltage, PWM-120-KN series

PWM-120-24KN

137212 PWM-120-24KN PWM-120-24KN 4711287463339 Mean Well LED driver series PWM-120-KN. LED drivers in a plastic case with 120W, a constant voltage, protection class II, a low no-load power consumption and an integrated KNX control protocol. These devices have a minimal dimming level of 0,5%, a PWM style output to maintain the colour temperature and the brightness as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. The PWM output frequency is adjustable by ETS up to a maximum of 4kHz. We offer the following types of this Mean Well series: PWM-120-12KNX and PWM-120-24KNX. single output output: 120W input voltage: 90 to 305V AC (47 bis 63Hz), 127 to 431V DC maximal input inrush current: 60A maximal leakage current: &lt;0,25mA overload protection: 108 to 130% withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90&deg;C weight: 800g

Specifications

manufacturer
Manufacturer's name PWM-120-24KN
GTIN 4711287463339
Output voltage [V] 24
Efficiency [%] 90
Output current [A] 5
Output power [W] 120
Data Sheet

Unit price

52,69 €

Volume discounts

Quantity Unit price
50 + 51,39 €

Stock: 46
Next incoming goods:
CW 48/2024
210 units

Further delivery:
CW 12/2025
