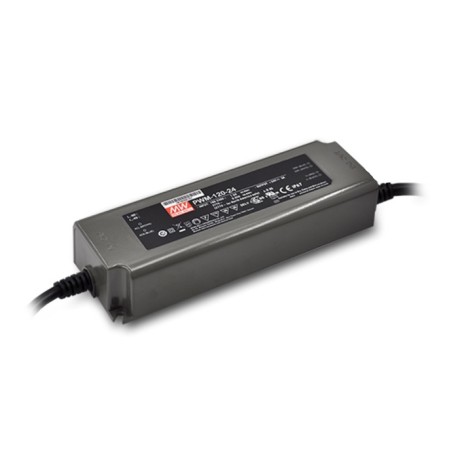

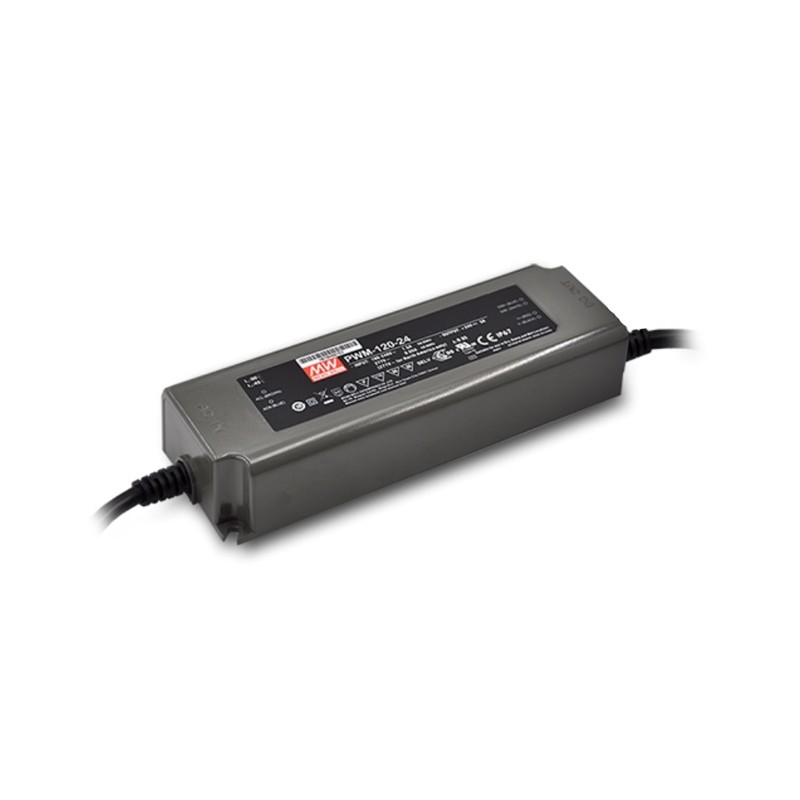

PWM-120-24TY1

Mean Well LED driver series PWM-120 IoT

LED drivers in a plastic housing (IP67) with 120W, a PWM output voltage (CV), protection class II and a universal input. These devices have a built-in active PFC function, a Tuya (PWM-120-_TY1) resp. a Silvair bluetooth interface (PWM-120-_SVA) and are protected against overload, overtemperature as well as overvoltage. They are suitable for LED lighting applications, have a fanless design and comply with UL 8750, EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: PWM-120-12TY1, PWM-120-24TY1, PWM-120-48TY1, PWM-120-12SVA, PWM-120-24SVA and PWM-120-48SVA.

  • single output
  • output: 120W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • input current: 0,55A
  • leakage current: 0,25mA
  • connection type: stranded wire
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +90°C
  • dimensions: 191x63x37,5mm
  • weight: 970g
PWM-120-24TY1, Mean Well LED drivers, 120W, IP67, PWM output voltage, Tuya/Silvair bluetooth interface, PWM-120 IoT series

PWM-120-24TY1

244894 PWM-120-24TY1 PWM-120-24TY1 Mean Well LED driver series PWM-120 IoT. LED drivers in a plastic housing (IP67) with 120W, a PWM output voltage (CV), protection class II and a universal input. These devices have a built-in active PFC function, a Tuya (PWM-120-_TY1) resp. a Silvair bluetooth interface (PWM-120-_SVA) and are protected against overload, overtemperature as well as overvoltage. They are suitable for LED lighting applications, have a fanless design and comply with UL 8750, EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: PWM-120-12TY1, PWM-120-24TY1, PWM-120-48TY1, PWM-120-12SVA, PWM-120-24SVA and PWM-120-48SVA. single output output: 120W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A input current: 0,55A leakage current: 0,25mA connection type: stranded wire withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +90°C dimensions: 191x63x37,5mm weight: 970g

Specifications

manufacturer
Manufacturer's name PWM-120-24TY1
Output voltage [V] 24
Efficiency [%] 87,5
Output current [A] 10
Output power [W] 120
Data Sheet

Unit price

47,59 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 510 units or
multiples of 510.
