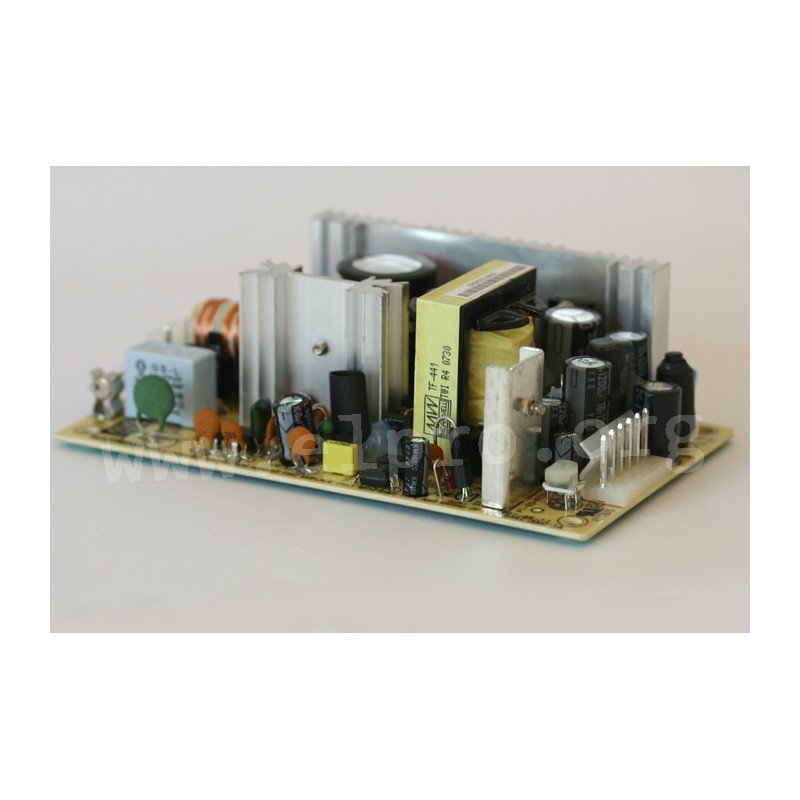

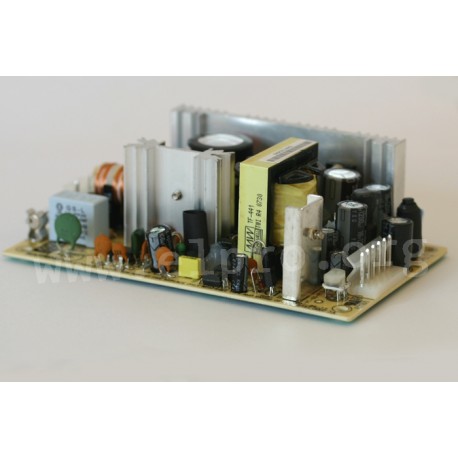

PSAI 60W +5V +12V -5V

Mean Well power supply series PT-65

Open frame type switching power supplies with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-65A, PT-65B, PT-65C and PT-65D.

  • triple output
  • output: 60 to 68W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • output voltage adjustment: +10/-5%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 250g
Meanwell PT-65 series

PSAI 60W +5V +12V -5V

17909 PSAI 60W +5V +12V -5V PT-65A PT-65A Mean Well power supply series PT-65. Open frame type switching power supplies with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-65A, PT-65B, PT-65C and PT-65D. triple output output: 60 to 68W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;0,75mA output voltage adjustment: +10/-5% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 250g

Specifications

manufacturer
Manufacturer's name PT-65A
Output voltage [V] 5/12/-5
Phase 2 phase
Efficiency [%] 76
Output current range [A] 0,4...7/0,2....
Output voltage tolerance: [%] ±4/±7/±5
Output rated current [A] 5,5/2,5/0,5
Output power [W] 60
Output voltage adjustment [V] 4,75...5,5
Ripple [mV] 50/120/50
Data Sheet

Unit price

15,69 €

Volume discounts

Quantity Unit price
50 + 14,59 €

Stock: 2
Next incoming goods:
CW 09/2025
50 units

Further delivery:
CW 12/2025
