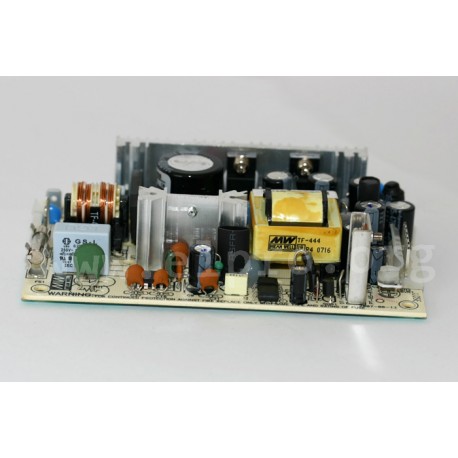

PSAI 43W +5V +15V -15V

Mean Well power supply series PT-45

Open frame type switching power supplies with 45W and a universal input. These devices have a fixed switching frequency and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-45A, PT-45B and PT-45C.

  • triple output
  • output: 40,5 to 43,5W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • leakage current: <0,75mA
  • output voltage adjustment: +10/-5%
  • overload protection: 53 to 75W
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 210g
PSAI 43W +5V +15V -15V

PSAI 43W +5V +15V -15V

17889 PSAI 43W +5V +15V -15V PT-45C PT-45C Mean Well power supply series PT-45. Open frame type switching power supplies with 45W and a universal input. These devices have a fixed switching frequency and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-45A, PT-45B and PT-45C. triple output output: 40,5 to 43,5W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC leakage current: &lt;0,75mA output voltage adjustment: +10/-5% overload protection: 53 to 75W withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 210g

Specifications

manufacturer
Manufacturer's name PT-45C
Output voltage [V] 5/15/-15
Phase 2 phase
Efficiency [%] 75
Output current range [A] 0,4...5/0,2....
Output voltage tolerance: [%] ±4/±7/±5
Output rated current [A] 3/1,6/0,3
Output power [W] 43,5
Output voltage adjustment [V] 4,75...5,5
Ripple [mV] 50/120/100
Data Sheet

Unit price

14,39 €

Volume discounts

Quantity Unit price
50 + 13,39 €

Stock: 137
Further delivery:
CW 09/2025
