PSPA-1000-48

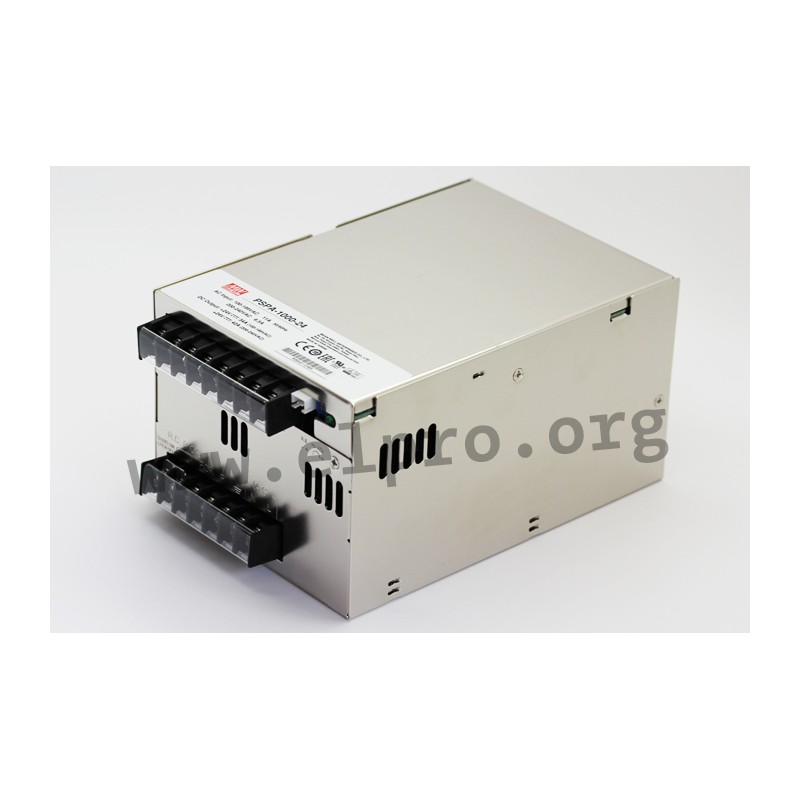

Mean Well power supply series PSPA-1000

Switching power supplies in an enclosed metal housing with 1000W, a parallel function, a built-in remote sense function, screw terminals, a built-in remote ON/OFF control, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSPA-1000-12, PSPA-1000-15, PSPA-1000-24 and PSPA-1000-48.

  • single output
  • output: 960 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <0,5mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 1930g

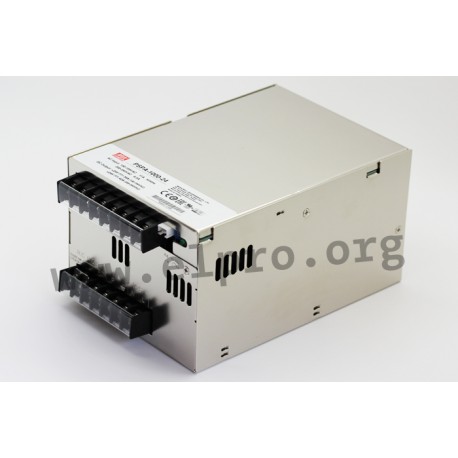

Mean Well PSPA-1000 series

PSPA-1000-48

111776 PSPA-1000-48 PSPA-1000-48 4711287435381 Mean Well power supply series PSPA-1000. Switching power supplies in an&nbsp;enclosed metal housing with 1000W, a parallel function, a built-in remote sense function, screw terminals, a built-in remote ON/OFF control, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;PSPA-1000-12,&nbsp;PSPA-1000-15,&nbsp;PSPA-1000-24 and&nbsp;PSPA-1000-48. single output output: 960 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;0,5mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 1930g

Specifications

manufacturer
Manufacturer's name PSPA-1000-48
GTIN 4711287435381
Output voltage [V] 48
Efficiency [%] 94
Output current range [A] 0...21
Output voltage tolerance: [%] 1
Output power [W] 1008
Ripple [mVp-p] 250
Output voltage adjustment [V] 46...56
Data Sheet

Unit price

166,59 €

Volume discounts

Quantity Unit price
50 + 160,99 €

Stock: 78
Further delivery:
CW 16/2025
