PSAIGP 48V 12,5A

Mean Well power supply series PSP-600

Switching power supplies in an enclosed housing with 600W, a universal input, a fan, screw terminals, a parallel function, a built-in remote sense function, a DC OK signal and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSP-600-5, PSP-600-12, PSP-600-13.5, PSP-600-13.5, PSP-600-15, PSP-600-24, PSP-600-27 and PSP-600-48.

  • single output
  • output: 400 to 600,75W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1,3mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1900g

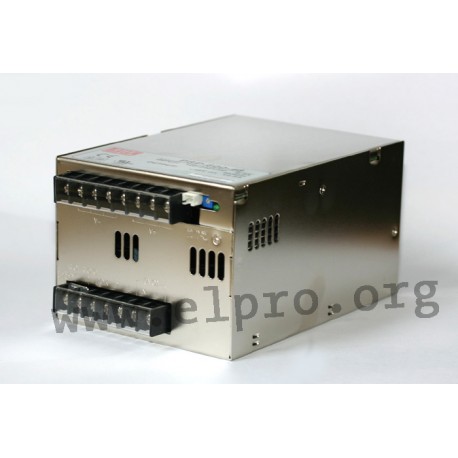

Meanwell PSP-600 series

PSAIGP 48V 12,5A

18083 PSAIGP 48V 12,5A PSP-600-48 PSP-600-48 Mean Well power supply series PSP-600. Switching power supplies in an enclosed housing with 600W, a universal input, a fan, screw terminals, a parallel function, a built-in remote sense function, a DC OK signal and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSP-600-5, PSP-600-12, PSP-600-13.5, PSP-600-13.5, PSP-600-15, PSP-600-24, PSP-600-27 and PSP-600-48. single output output: 400 to 600,75W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 40A leakage current: &lt;1,3mA output voltage adjustment: ±10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1900g

Specifications

manufacturer
Manufacturer's name PSP-600-48
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 87
Output current range [A] 0...12,5
Output voltage tolerance: [%] ±1
Output rated current [A] 12,5
Output power [W] 600
Output voltage adjustment [V] 41...56
Ripple [mV] 300
Data Sheet

Unit price

109,29 €

Volume discounts

Quantity Unit price
50 + 106,49 €

Stock: 18
Next incoming goods:
CW 12/2025
200 units

Further delivery:
CW 16/2025
