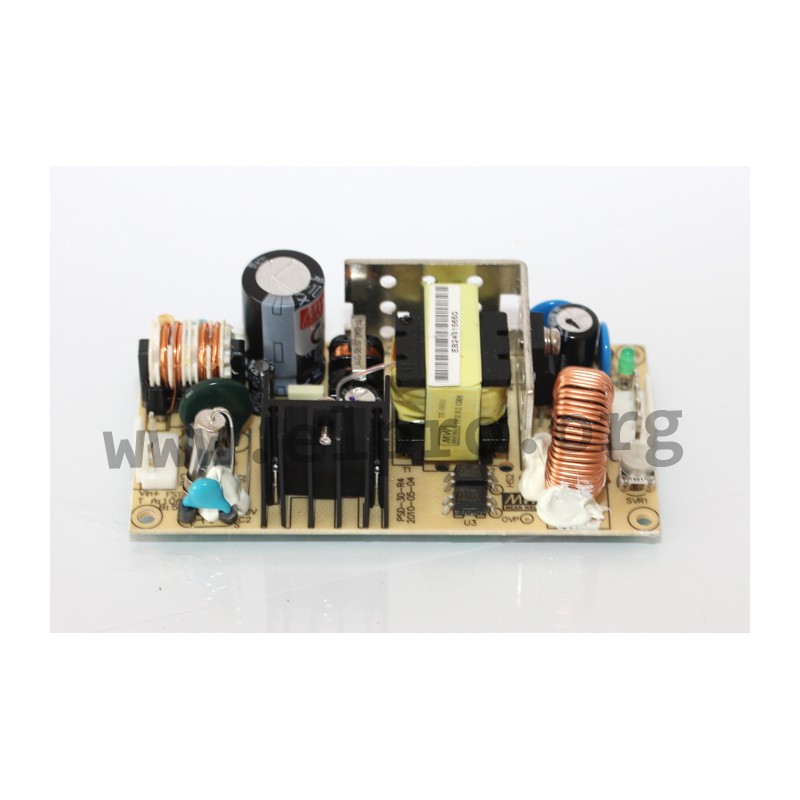

PSD-30A-24

DC/DC-converter-modules PSD-30 by Meanwell

• output: 30 W
• open frame
• single output
• overload protection by pulsing hiccup, auto recovery
• input voltage range 2:1
• DC decoupling of input and output
• regulated output voltage
• short-circuit proof
• 105 to 150% over load protection
• I/P-O/P - I/P-FG, withstand voltage: 1500 V AC
• O/P-FG, withstand voltage: 500 V AC
• operating temperature: -20 to +60°C
• by Mean Well
• weight: 150g

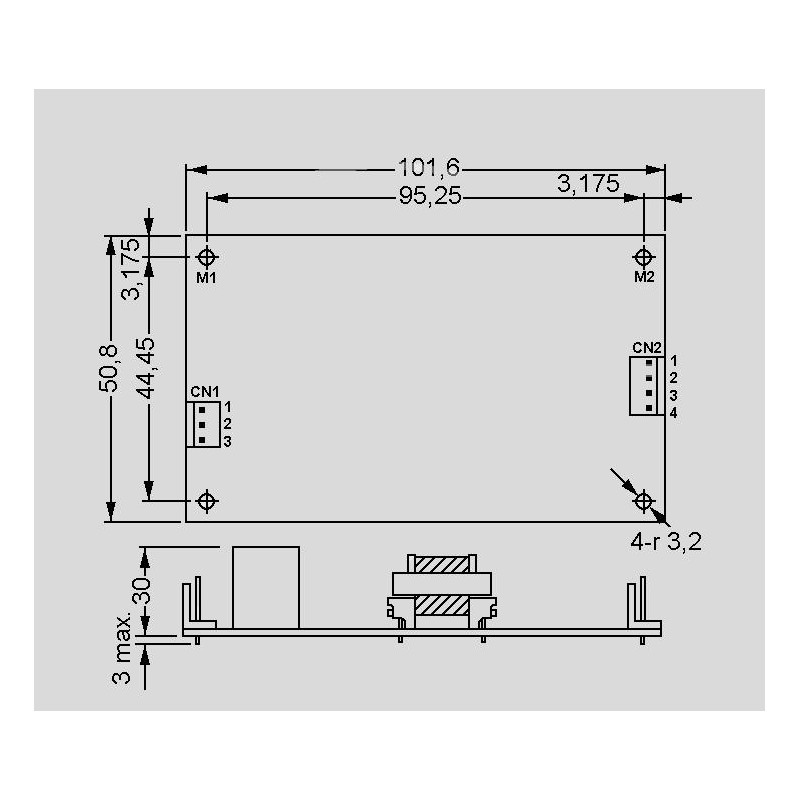

• pin assignment:
CN1
Pin 1:-UIN
Pin 2: not connected
Pin 3: +UIN
CN2
Pin 1, 2: +UOUT
Pin 3, 4: -UOUT

Meanwell PSD-30 series

PSD-30A-24

35686 PSD-30A-24 PSD-30A-24 4711287466484 DC/DC-converter-modules PSD-30 by Meanwell. • output: 30 W• open frame• single output• overload protection by pulsing hiccup, auto recovery• input voltage range 2:1• DC decoupling of input and output• regulated output voltage• short-circuit proof• 105 to 150% over load protection• I/P-O/P - I/P-FG, withstand voltage: 1500 V AC• O/P-FG, withstand voltage: 500 V AC• operating temperature: -20 to +60°C• by Mean Well• weight: 150g• pin assignment:CN1Pin 1:-UINPin 2: not connectedPin 3: +UINCN2Pin 1, 2: +UOUTPin 3, 4: -UOUT

Specifications

manufacturer
Manufacturer's name PSD-30A-24
GTIN 4711287466484
Input voltage [V] 9...18
Output voltage [V] 24
Output current tolerance [%] ±1
Efficiency [%] 78
Output current range [A] 0...1,25
Ripple [mV] 150
Data Sheet

Unit price

12,59 €

Stock: 0
Further delivery:
CW 17/2025
