PSD-15A-24

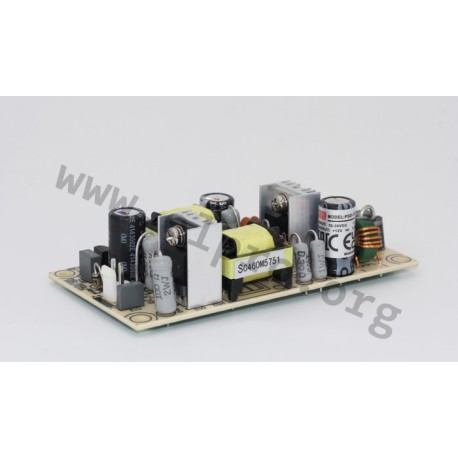

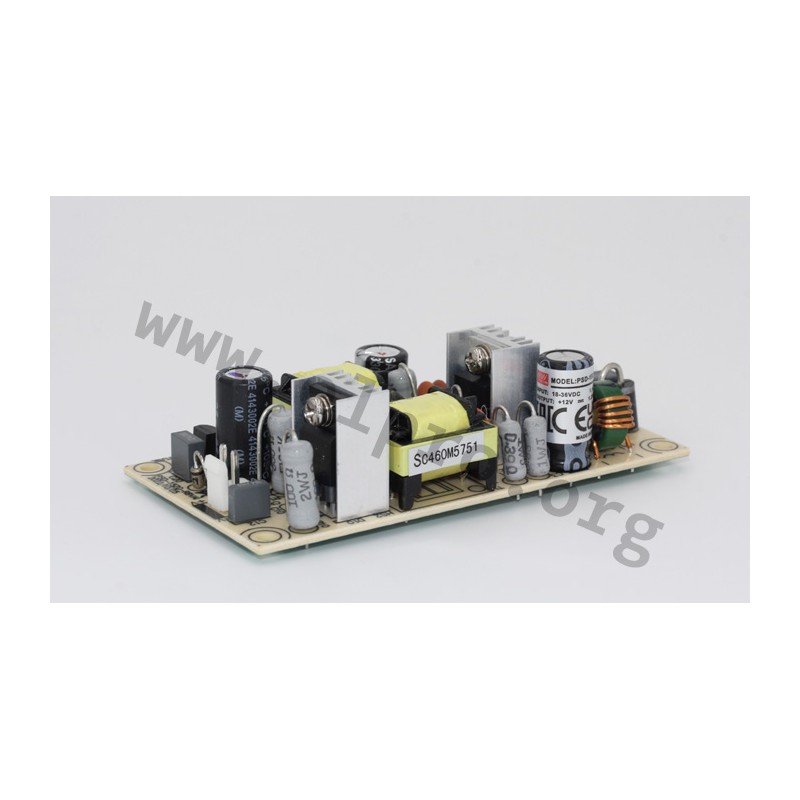

Mean Well DC/DC converter series PSD-15

Open frame DC/DC converters with 15W, a regulated output voltage and an input voltage ratio of 2:1. These devices have a high reliability and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032, EN55024 as well as EN61000-6-1. We offer the following types of this Mean Well series: PSD-15A-5, PSD-15A-12, PSD-15A-24, PSD-15B-5, PSD-15B-12, PSD-15B-24, PSD-15C-5, PSD-15C-12 and PSD-15C-24.

  • single output
  • output: 14,4 to 15W
  • overload protection: 105 to 150%
  • withstand voltage: 2000V AC
  • operating temperature: -10 to +60°C
  • weight: 81g
PSD-15A-24, Mean Well DC/DC converters, 15W, open frame (PCB), PSD-15 series

PSD-15A-24

32271 PSD-15A-24 PSD-15A-24 4711287466392 Mean Well DC/DC converter series PSD-15. Open frame DC/DC converters with 15W, a regulated output voltage and an input voltage ratio of 2:1. These devices have a high reliability and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032, EN55024 as well as EN61000-6-1. We offer the following types of this Mean Well series: PSD-15A-5, PSD-15A-12, PSD-15A-24, PSD-15B-5, PSD-15B-12, PSD-15B-24, PSD-15C-5, PSD-15C-12 and PSD-15C-24. single output output: 14,4 to 15W overload protection: 105 to 150% withstand voltage: 2000V AC operating temperature: -10 to +60°C weight: 81g

Specifications

manufacturer
Manufacturer's name PSD-15A-24
GTIN 4711287466392
Input [V DC] 9,2...18
Output voltage [V] 24
Efficiency [%] 72
Output current range [A] 0...0,6
Ripple [mV] 100
Data Sheet

Unit price

8,09 €

Volume discounts

Quantity Unit price
50 + 7,49 €

Stock: 15
Further delivery:
CW 12/2025
