PSD-05-5

Mean Well DC/DC converter series PSD-05

Open frame type DC/DC converters with 5W and an input voltage ratio of 2:1. These devices have a built-in EMI filter and are protected against overload, overvoltage, overtemperature as well as short circuit. They have a high reliability and comply with EN55032 class B, EN55024 as well as EN61000-6-1. We offer the type PSD-05-5 of this Mean Well series.

  • single output
  • output: 5W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 2000V AC
  • operating temperature: -10 to +60°C

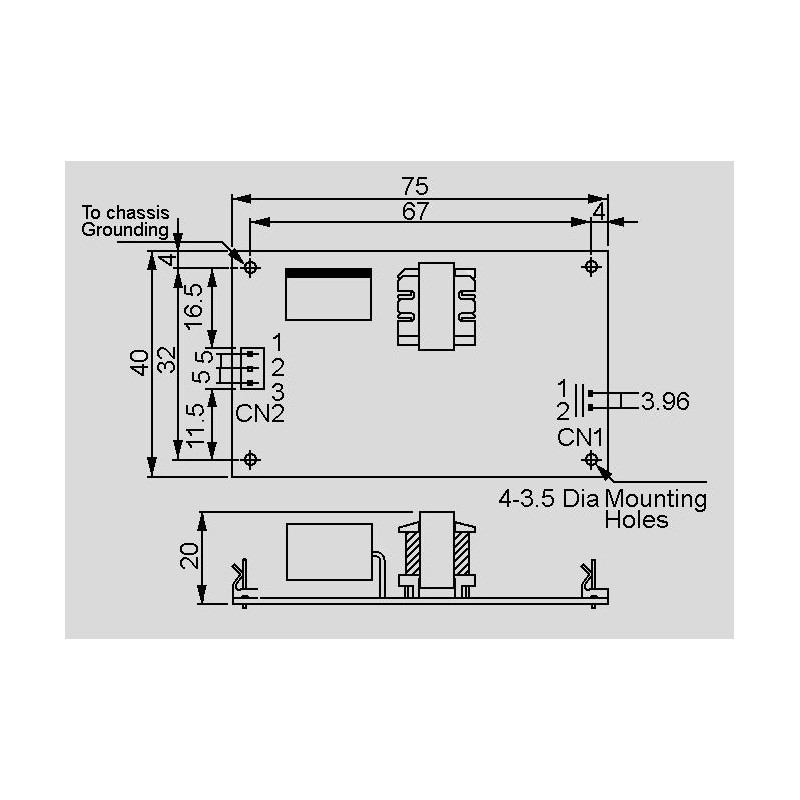

  • dimensions: 75x40x20mm
  • weight: 50g

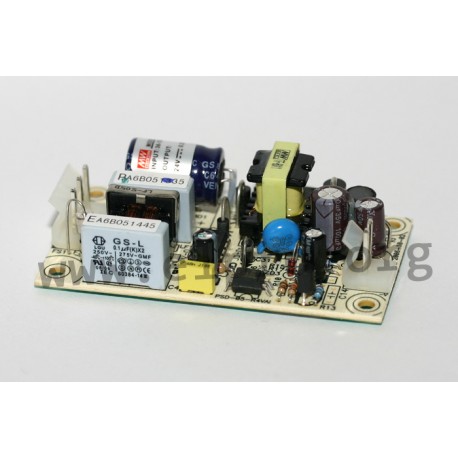

Meanwell PSD-05 series

PSD-05-5

32265 PSD-05-5 PSD-05-5 Mean Well DC/DC converter series PSD-05. Open frame type DC/DC converters with 5W and an input voltage ratio of 2:1. These devices have a built-in EMI filter and are protected against overload, overvoltage, overtemperature as well as short circuit. They have a high reliability and comply with EN55032 class B, EN55024 as well as EN61000-6-1. We offer the type PSD-05-5 of this Mean Well series. single output output: 5W output voltage tolerance: ±2% maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 2000V AC operating temperature: -10 to +60°C dimensions: 75x40x20mm weight: 50g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PSD-05-5
Output voltage [V] 5
Output current range [mA] 0...1
Efficiency [%] 75
Output voltage tolerance: [%] 2
Ripple [mV] 50
Data Sheet

Unit price

6,49 €

Stock: 4
