PSC-100B

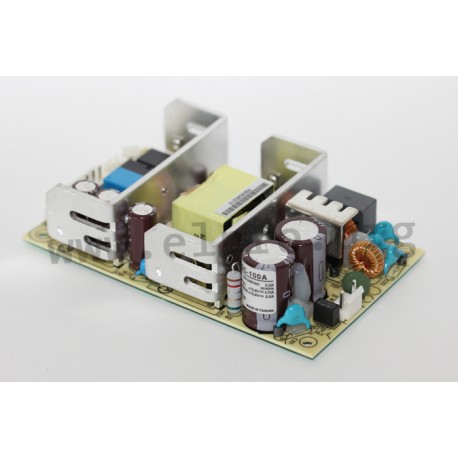

Mean Well battery charger series PSC-100A

Open-Frame and enclosed type switching power supplies (PSC_-C) with 100W, UPS function (battery charger) and a universal input. These devices have both a power-fail signal as well as a battery-low signal and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a battery deep discharge protection and comply with UL62368-1, EN62368-1, IEC62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: PSC-100A, PSC-100B, PSC-100A-C and PSC-100B-C.

  • single output
  • output: 100,05 to 100,74W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • maximal leakage current: 1mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 230g

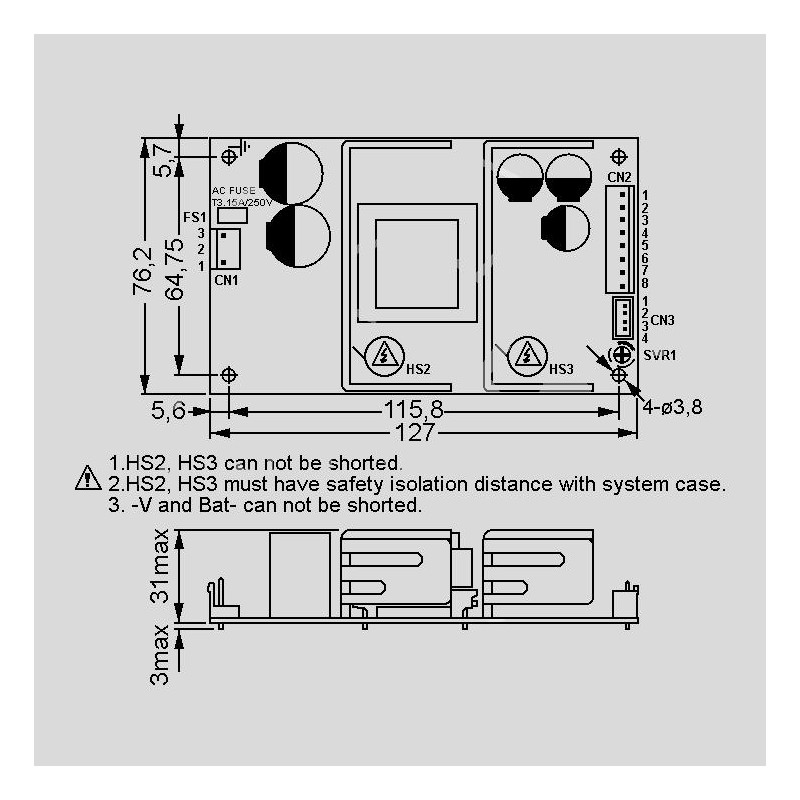

dimensions

PSC-100B

35576 PSC-100B PSC-100B 4711232760605 Mean Well battery charger series PSC-100A. Open-Frame and enclosed type switching power supplies (PSC_-C) with 100W, UPS function (battery charger) and a universal input. These devices have both a power-fail signal as well as a battery-low signal and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a battery deep discharge protection and comply with UL62368-1, EN62368-1, IEC62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: PSC-100A, PSC-100B, PSC-100A-C and PSC-100B-C. single output output: 100,05 to 100,74W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A maximal leakage current: 1mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 230g

Specifications

manufacturer
Manufacturer's name PSC-100B
GTIN 4711232760605
Output voltage [V] 27,6/27,6
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...3,5/0...1,25
Output voltage tolerance: [%] 1
Output power [W] 100,74
Output voltage adjustment [V] 24...29
Ripple [mV] 100
Data Sheet

Unit price

32,79 €

Volume discounts

Quantity Unit price
50 + 32,09 €

Stock: 90
Further delivery:
CW 12/2025
