PSAI 15V 2,4A

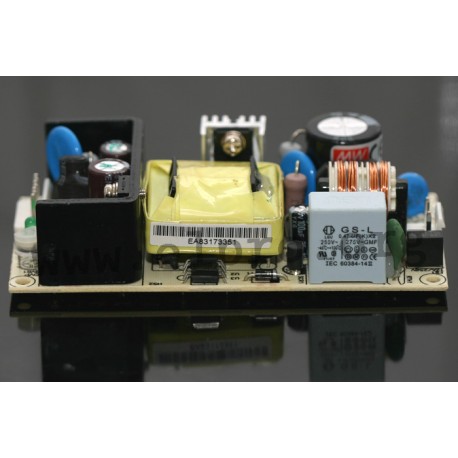

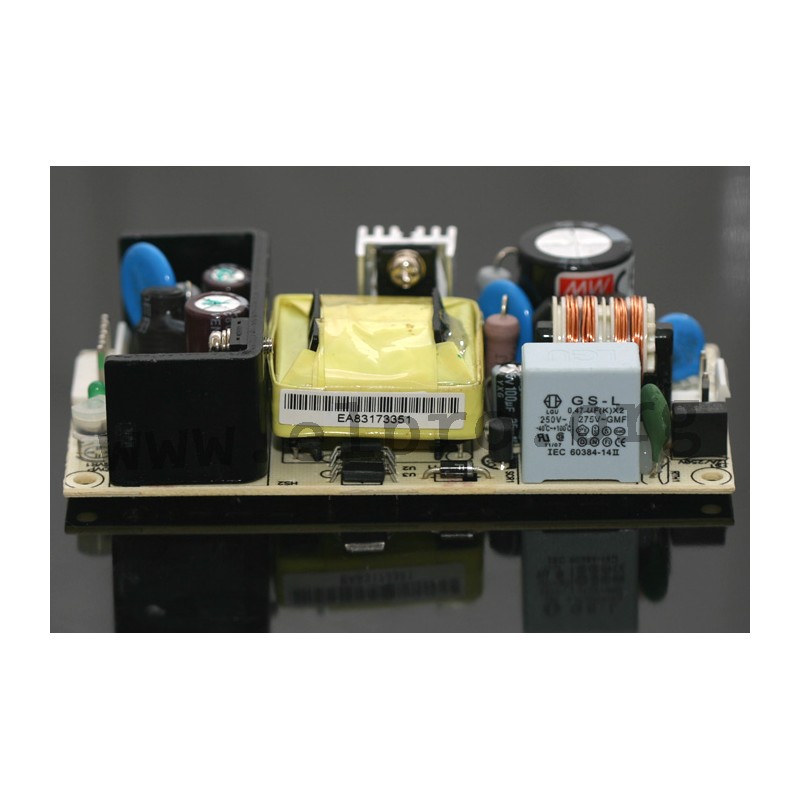

Mean Well power supply series PS-35

Open frame type switching power supplies with 35W and a universal input. These devices have PC pins for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-35-3.3 and PS-35-15.

  • single output
  • output: 19,8 to 36W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <2mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +65°C

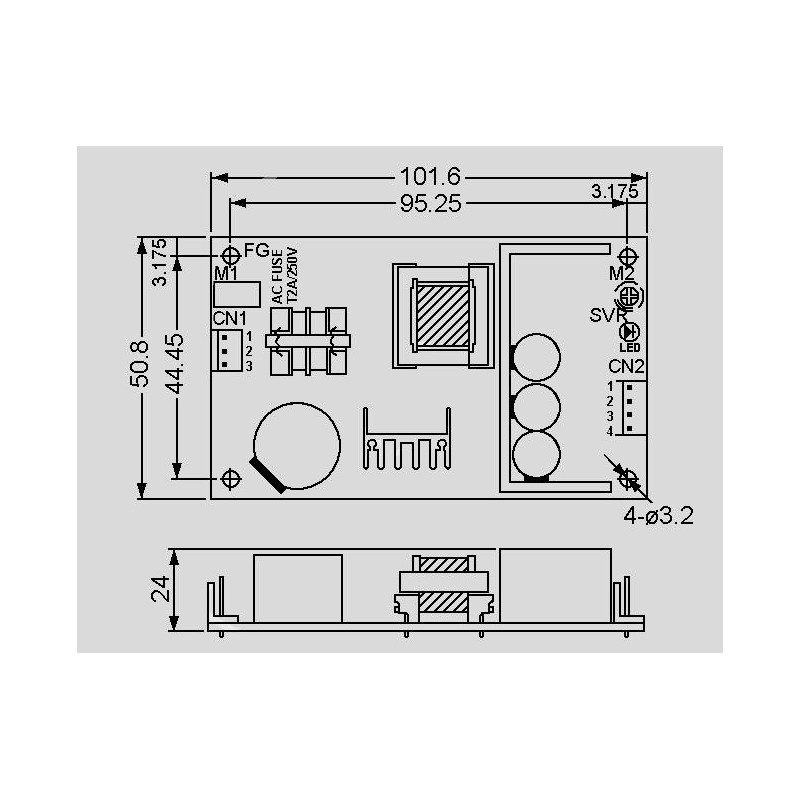

  • dimensions: 101,6x50,8x24mm
  • weight: 124g

PSAI 15V 2,4A

30710 PSAI 15V 2,4A PS-35-15 PS-35-15 Mean Well power supply series PS-35. Open frame&nbsp;type switching power supplies with 35W and a universal input. These devices have PC pins for nylon-crimp terminals and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with&nbsp;UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;PS-35-3.3 and PS-35-15. single output output: 19,8 to 36W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 45A leakage current: &lt;2mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +65&deg;C dimensions:&nbsp;101,6x50,8x24mm weight: 124g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PS-35-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...2,4
Output voltage tolerance: [%] 1
Output power [W] 36
Output rated current [A] 2,4
Ripple [mV] 150
Data Sheet

Unit price

14,09 €

Stock: 25
