PSAI 12V 1,25A

Mean Well power supply series PS-15

Open frame type switching power supplies with 15W, a universal input and a low no-load power. These devices have contact pins for nylon-crimp terminals and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a high reliability and comply with IEC60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-15-12 and PS-15-24.

  • single output
  • output: 15W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • overload protection: >105%
  • leakage current: 0,5mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 83g

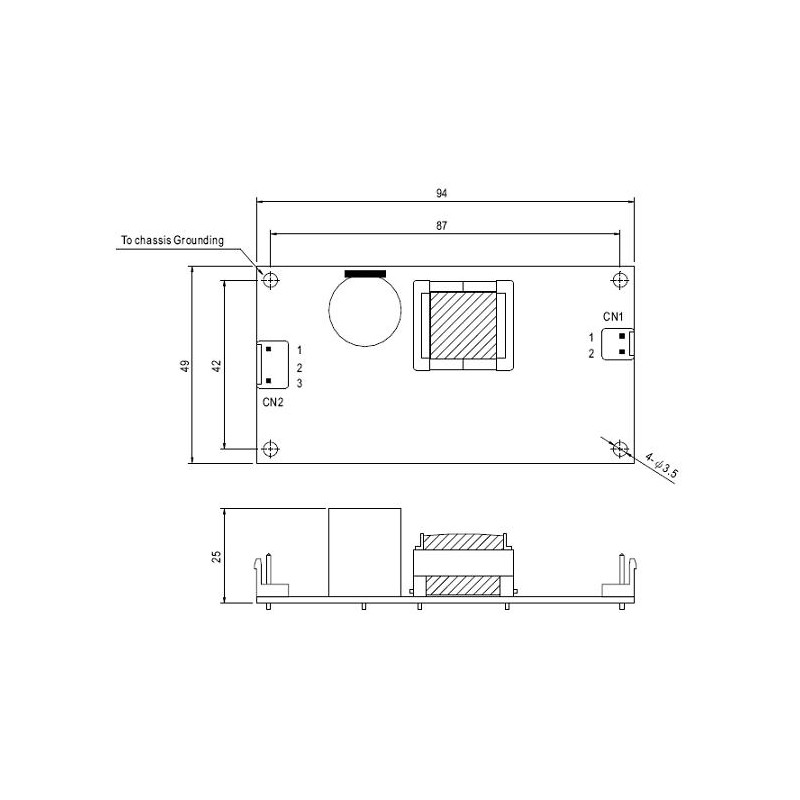

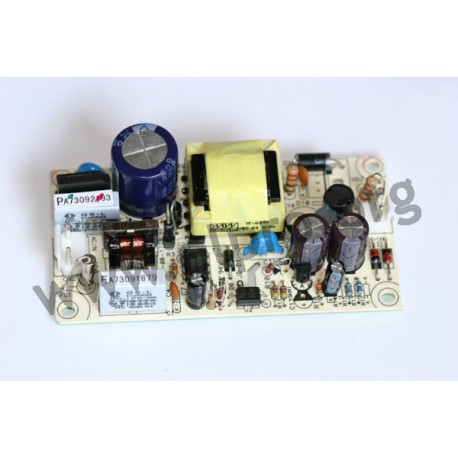

dimensions

PSAI 12V 1,25A

17839 PSAI 12V 1,25A PS-15-12 PS-15-12 Mean Well power supply series PS-15. Open frame type switching power supplies with 15W, a universal input and a low no-load power. These devices have contact pins for nylon-crimp terminals and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a high reliability and comply with IEC60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-15-12 and PS-15-24. single output output: 15W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A overload protection: >105% leakage current: 0,5mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 83g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PS-15-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 77
Output current range [A] 0...1,25
Output voltage tolerance: [%] ±2
Output rated current [A] 1,25
Output power [W] 15
Ripple [mV] 120
Data Sheet

Unit price

8,39 €

Stock: 3
