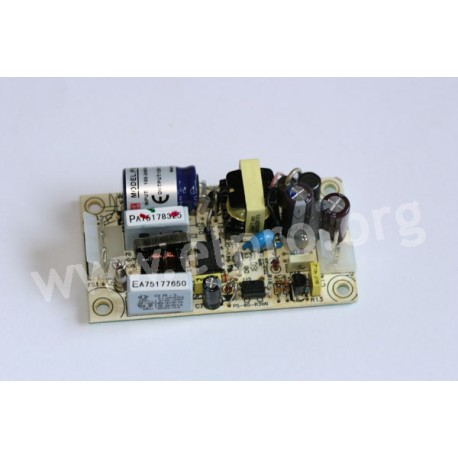

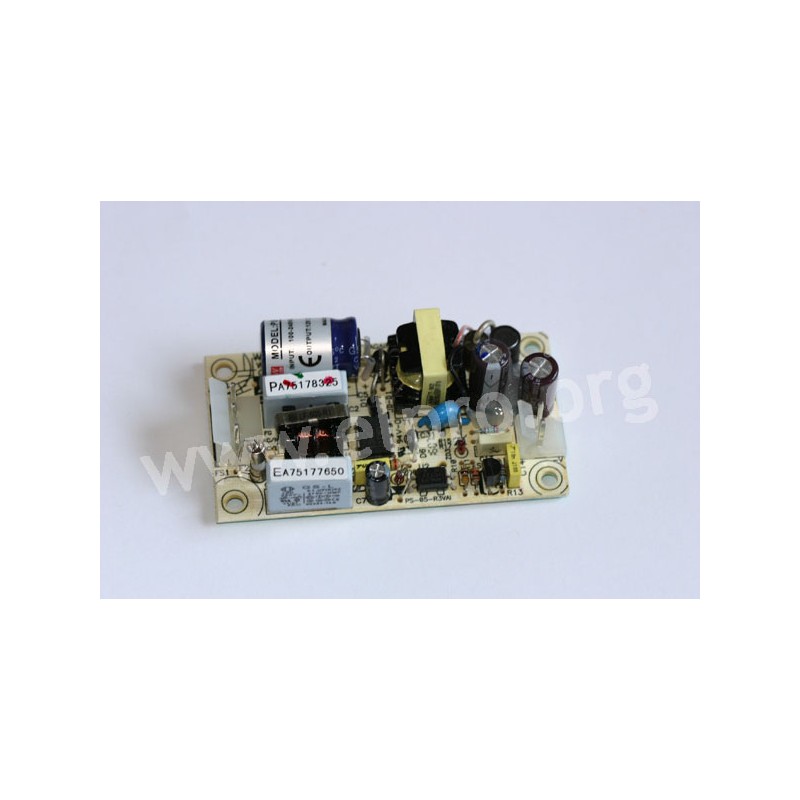

PSAI 15V 0,35A

Mean Well power supply series PS-05

Open frame type switching power supplies with 5W and a universal input. These devices have contact pins for nylon-crimp terminals and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high reliability and comply with IEC62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-05-5, PS-05-12, PS-05-15, PS-05-24 and PS-05-24.

  • single output
  • output: 5 to 5,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <0,5mA
  • overload protection: >105%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -10 to +60°C
  • weight: 50g
PSAI 15V 0,35A

PSAI 15V 0,35A

26663 PSAI 15V 0,35A PS-05-15 PS-05-15 Mean Well power supply series PS-05. Open frame type switching power supplies with 5W and a universal input. These devices have contact pins for nylon-crimp terminals and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high reliability and comply with IEC62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-05-5, PS-05-12, PS-05-15, PS-05-24 and PS-05-24. single output output: 5 to 5,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 30A leakage current: &lt;0,5mA overload protection: &gt;105% withstand voltage I/P-O/P: 3000V AC operating temperature: -10 to +60°C weight: 50g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PS-05-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 75
Output current range [A] 0...0,35
Output voltage tolerance: [%] ±2
Output rated current [A] 0,35
Output power [W] 5,25
Ripple [mV] 120
Data Sheet

Unit price

6,89 €

Volume discounts

Quantity Unit price
50 + 6,19 €

Stock: 90
