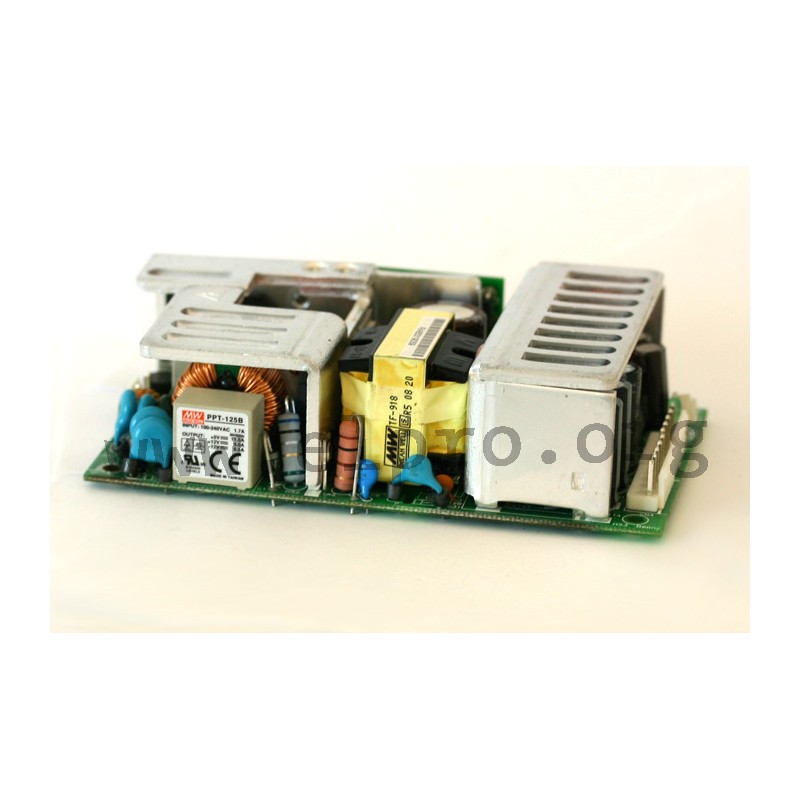

PPT-125B

Mean Well power supply series PPT-125

Switching power supplies in a 5"x3" housing (open frame) with 125W (18cfm forced air) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PPT-125A, PPT-125B, PPT-125C and PPT-125D.

  • triple output
  • output: 79 to 101W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 24A
  • leakage current: <2mA
  • output voltage adjustment CH1: ±5%
  • overload protection: 130 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 370g

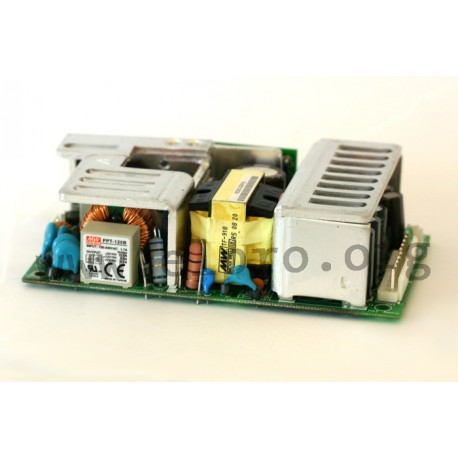

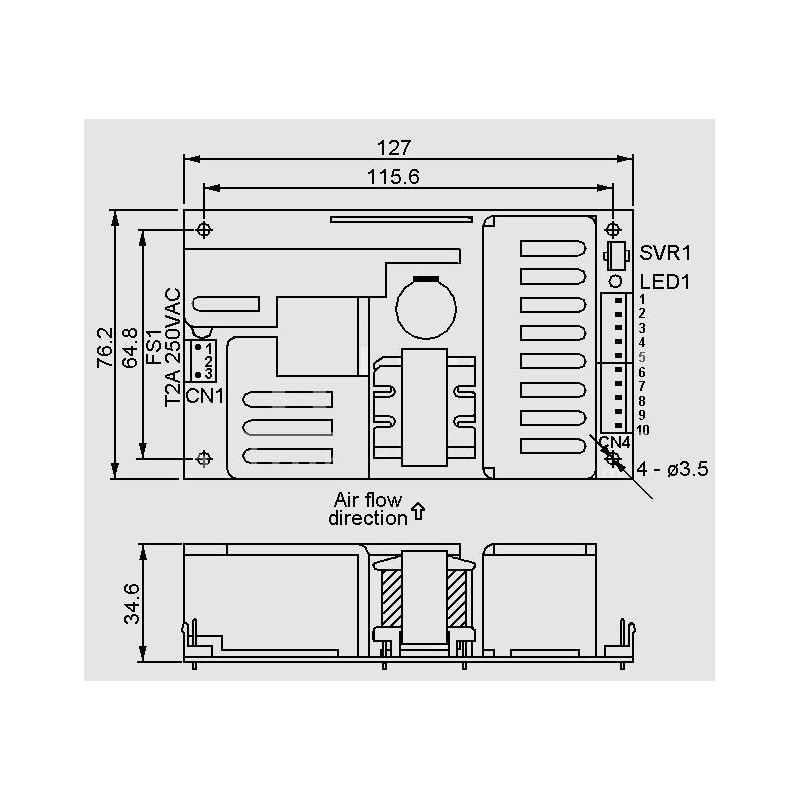

dimensions

PPT-125B

30754 PPT-125B PPT-125B 4711287426365 Mean Well power supply series PPT-125. Switching power supplies in a 5"x3" housing (open frame) with 125W (18cfm forced air) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin&nbsp;strip connection for nylon crimp terminals and comply with&nbsp;UL/EN60950-1, EN55032 class&nbsp;B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;PPT-125A, PPT-125B, PPT-125C and PPT-125D. triple output output: 79 to 101W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 24A leakage current: &lt;2mA output voltage adjustment CH1:&nbsp;&plusmn;5% overload protection: 130 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 370g

Specifications

manufacturer
Manufacturer's name PPT-125B
GTIN 4711287426365
Output voltage [V] 5/12/-12
Phase 2 phase
Efficiency [%] 78
Output current range [A] 1...11,5/0,3...
Output voltage tolerance: [%] ±3/±5/±6
Output rated current [A] 11,5/3/0,5
Output power [W] 99,5
Ripple [mV] 100/120/120
Data Sheet

Unit price

41,89 €

Volume discounts

Quantity Unit price
50 + 41,09 €

Stock: 15
Further delivery:
CW 09/2025
