PLP-60-24

Mean Well LED driver series PLP-60

LED drivers with an adjustable output current, a universal input and 60W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-60-12, PLP-60-24 and PLP-60-48.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 101,6x50,8x29,6mm
  • weight: 160g

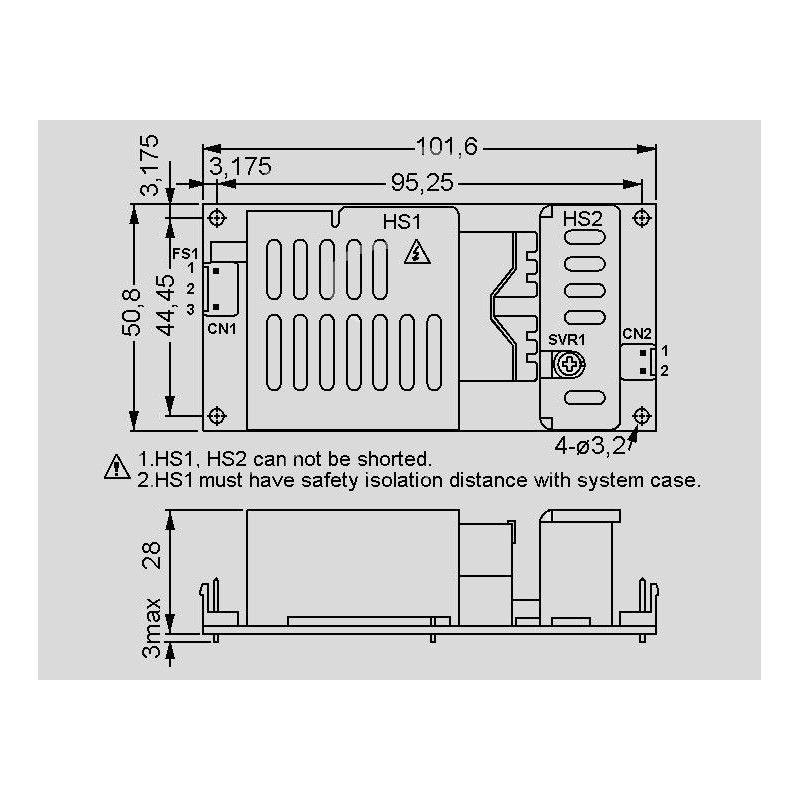

dimensions

PLP-60-24

35139 PLP-60-24 PLP-60-24 4711287440552 Mean Well LED driver series PLP-60. LED drivers with an adjustable output current, a universal input and 60W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-60-12, PLP-60-24 and PLP-60-48. single output output: 60 to 62,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 101,6x50,8x29,6mm weight: 160g

Specifications

manufacturer
Manufacturer's name PLP-60-24
GTIN 4711287440552
Output voltage [V] 24
Phase 2 phase
Output current adjustment [A] 1,875...2,5
Efficiency [%] 88
Output current range [A] 0...2,5
Output voltage tolerance: [%] 10
Output power [W] 60
Ripple [mV] 4,5
Data Sheet

Unit price

13,09 €

Volume discounts

Quantity Unit price
50 + 12,29 €

Stock: 285
Further delivery:
CW 16/2025
