PLP-30-24

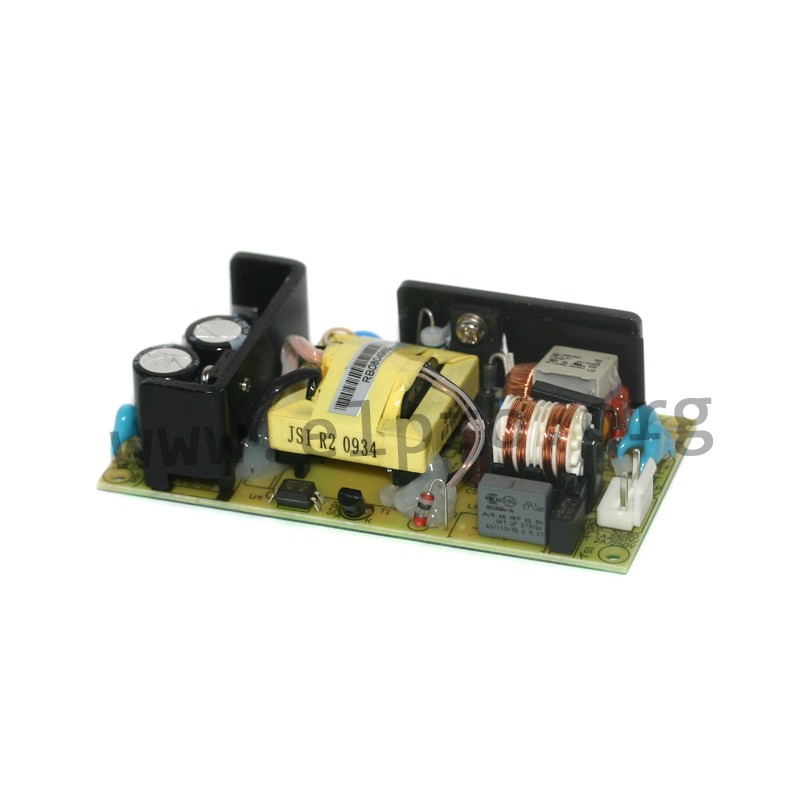

Mean Well LED driver series PLP-30

LED drivers with a constant current / constant voltage, a universal input and 30W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-30-12, PLP-30-24 and PLP-30-48.

  • single output
  • output: 30,24 to 31,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C

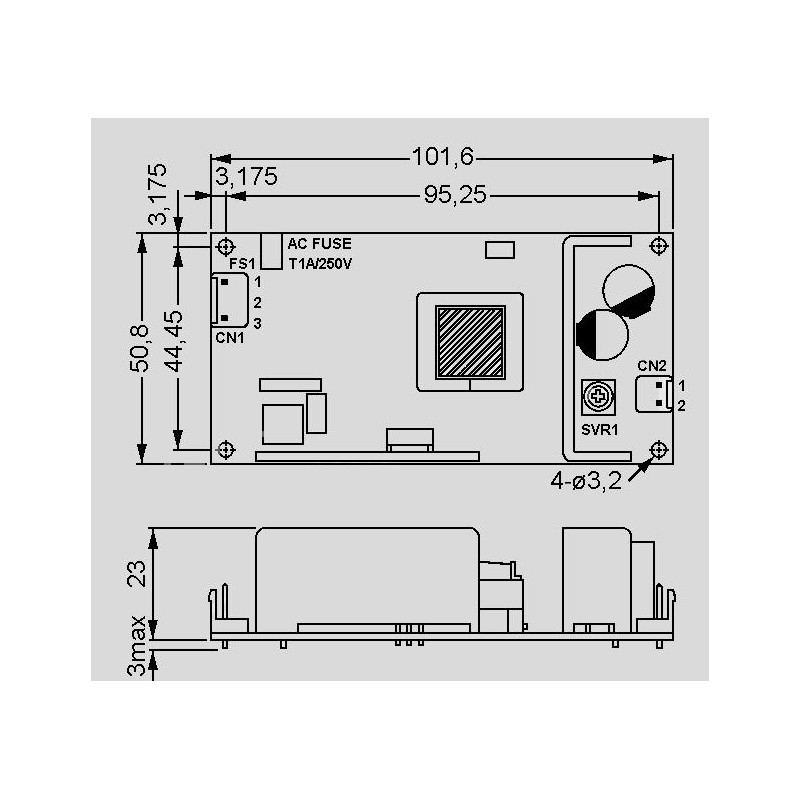

  • dimensions: 101,16x50,8x26,6mm
  • weight: 120g

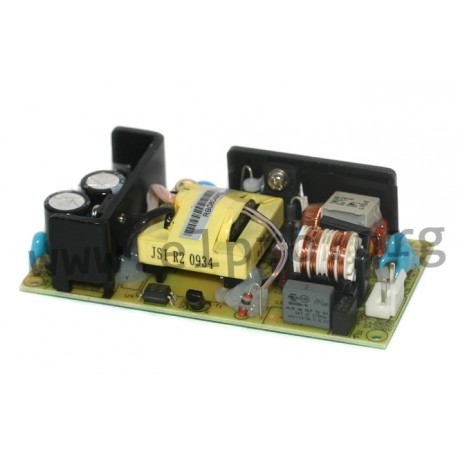

PLP-30-24

PLP-30-24

35137 PLP-30-24 PLP-30-24 4711287462066 Mean Well LED driver series PLP-30. LED drivers with a constant current / constant voltage, a universal input and 30W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-30-12, PLP-30-24 and PLP-30-48. single output output: 30,24 to 31,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 101,16x50,8x26,6mm weight: 120g

Specifications

manufacturer
Manufacturer's name PLP-30-24
GTIN 4711287462066
Output voltage [V] 24
Phase 2 phase
Output current adjustment [A] 0,975...1,3
Efficiency [%] 85,5
Output current range [A] 0...1,3
Output voltage tolerance: [%] 10
Output power [W] 31,2
Ripple [mV] 2,4
Data Sheet

Unit price

12,29 €

Volume discounts

Quantity Unit price
50 + 11,39 €

Stock: 20
Further delivery:
CW 16/2025
