PLN-60-24

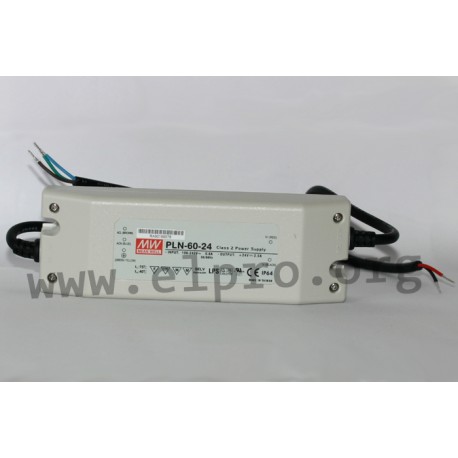

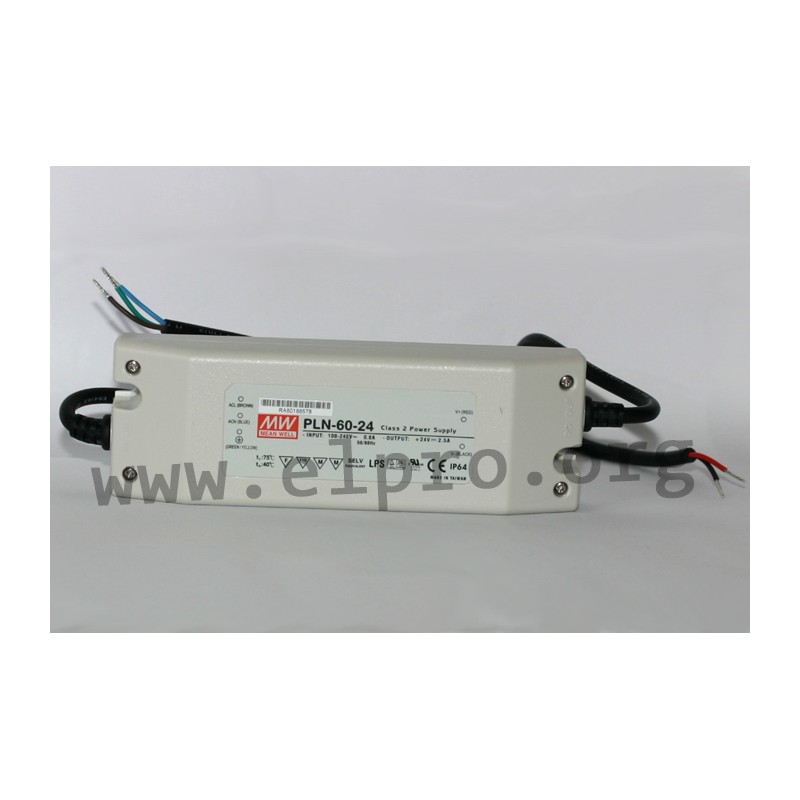

Mean Well LED driver series PLN-60

LED drivers in a plastic housing (IP64) with a constant current / constant voltage (mixed mode), 60W and a universal input. These devices are suitable for LED lighting applications and comply with UL1310 Class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLN-60-12, PLN-60-15, PLN-60-20, PLN-60-24, PLN-60-27, PLN-60-36 and PLN-60-48.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C
  • dimensions: 181x61,5x35mm
  • weight: 500g

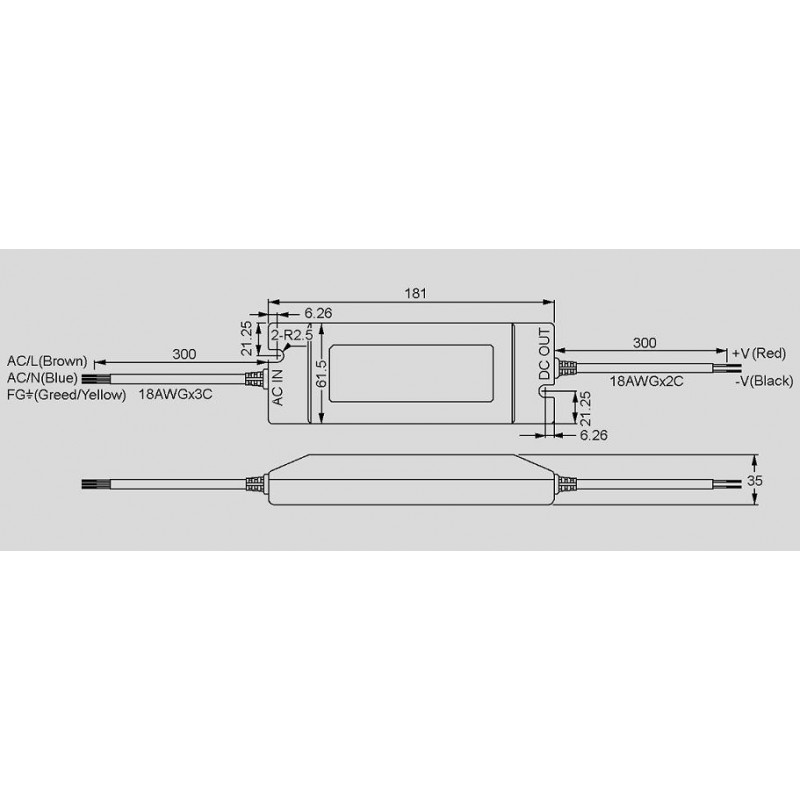

dimensions

PLN-60-24

32652 PLN-60-24 PLN-60-24 4711287460673 Mean Well LED driver series PLN-60. LED drivers in a plastic housing (IP64) with a constant current / constant voltage (mixed mode), 60W and a universal input. These devices are suitable for LED lighting applications and comply with UL1310 Class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLN-60-12, PLN-60-15, PLN-60-20, PLN-60-24, PLN-60-27, PLN-60-36 and PLN-60-48. single output output: 60 to 62,4W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 181x61,5x35mm weight: 500g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLN-60-24
GTIN 4711287460673
Output voltage [V] 24
Phase 2 phase
Ripple [Vp-p] 2,7
Efficiency [%] 87
Output current range [A] 0...2,5
Output voltage tolerance: [%] 10
Output power [W] 60
Data Sheet

Unit price

38,69 €

Stock: 93
