PLN-45-24

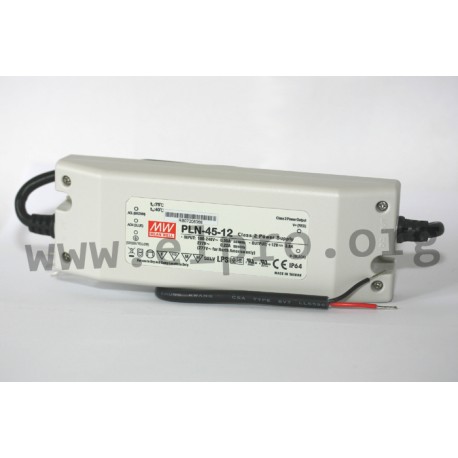

Mean Well LED driver series PLN-45

LED drivers in a plastic housing (IP64) with 45W, a constant current / constant voltage (mixed mode) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-45-12, PLN-45-20, PLN-45-24, PLN-45-27, PLN-45-36 and PLN-45-48.

  • single output
  • output: 45 to 46W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 35A
  • output current adjustment: -25 to +3%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C

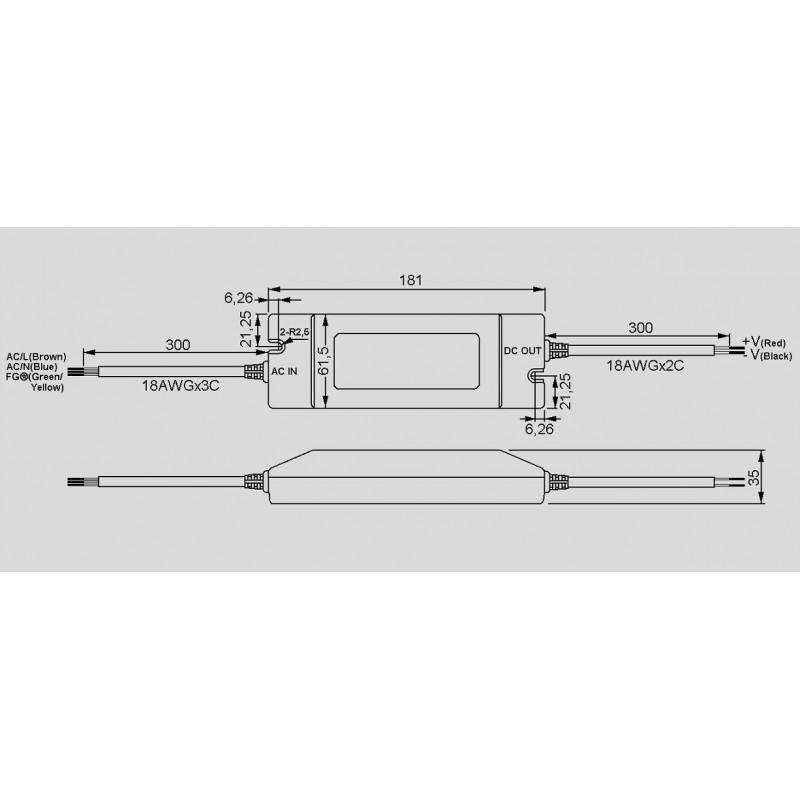

  • dimensions: 181x61,5x35mm
  • weight: 500g
PLN-45-24

PLN-45-24

35436 PLN-45-24 PLN-45-24 4711287460604 Mean Well LED driver series PLN-45. LED drivers in a plastic housing (IP64) with 45W, a constant current / constant voltage (mixed mode) and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL1310 class 2, EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-45-12, PLN-45-20, PLN-45-24, PLN-45-27, PLN-45-36 and PLN-45-48. single output output: 45 to 46W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 35A output current adjustment: -25 to +3% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 181x61,5x35mm weight: 500g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLN-45-24
GTIN 4711287460604
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 86,5
Output current range [A] 0...1,9
Output voltage tolerance: [%] 10
Output power [W] 45,6
Ripple [mV] 2,7
Data Sheet

Unit price

31,90 €

Stock: 0
Next incoming goods:
CW 10/2025
20 units

Further delivery:
CW 30/2025
