PLN-30-15

Mean Well LED driver series PLN-30

LED drivers in a plastic housing (IP64) with a constant voltage / constant current (mixed mode), 30W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-30-12, PLN-30-15, PLN-30-20, PLN-30-24, PLN-30-27, PLN-30-36 and PLN-30-48.

  • single output
  • output: 30 to 30,24W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +50°C
  • dimensions: 145x47x30mm
  • weight: 220g

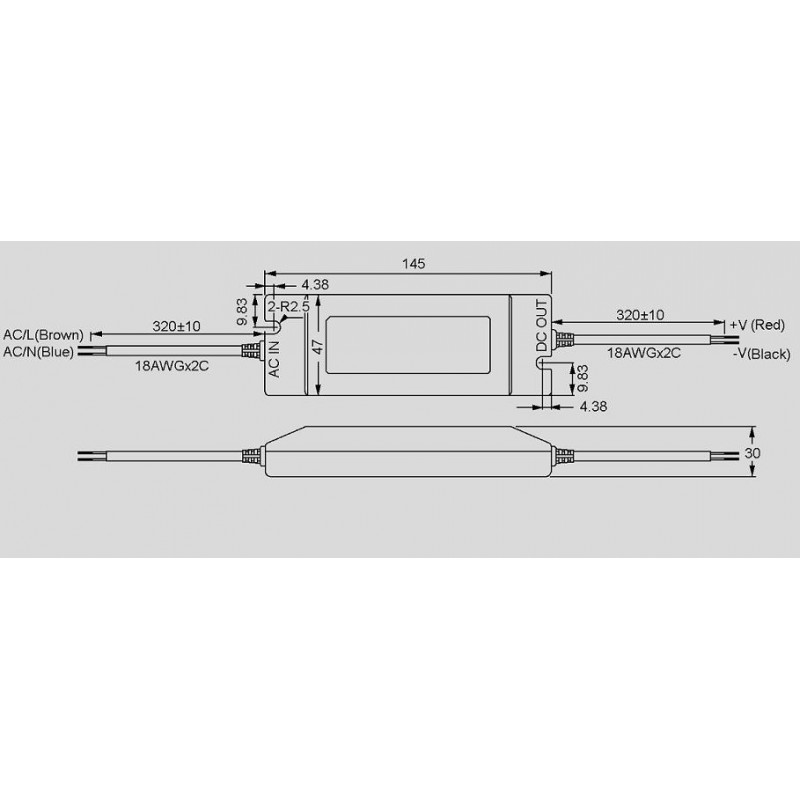

dimensions

PLN-30-15

32639 PLN-30-15 PLN-30-15 4711287460512 Mean Well LED driver series PLN-30. LED drivers in a plastic housing (IP64) with a constant voltage / constant current (mixed mode), 30W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-30-12, PLN-30-15, PLN-30-20, PLN-30-24, PLN-30-27, PLN-30-36 and PLN-30-48. single output output: 30 to 30,24W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +50°C dimensions: 145x47x30mm weight: 220g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLN-30-15
GTIN 4711287460512
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...2
Output voltage tolerance: [%] ±10
Output power [W] 30
Output rated current [A] 2
Ripple [mV] 2600
Data Sheet

Unit price

22,29 €

Stock: 14
