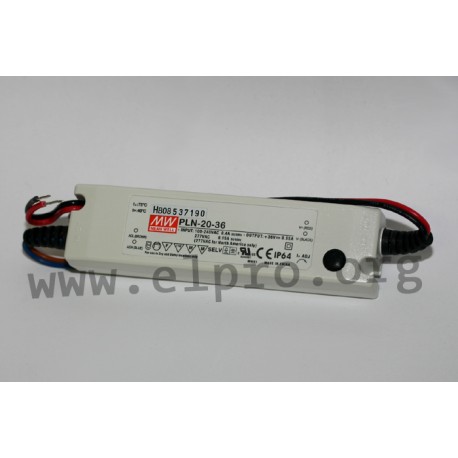

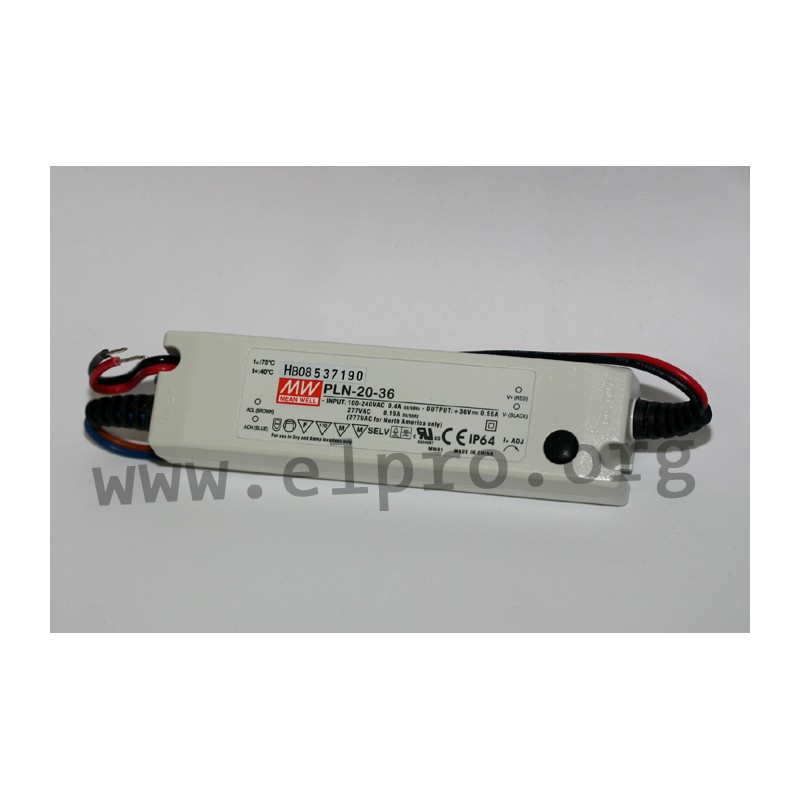

PLN-20-48

Mean Well LED driver series PLN-20

LED drivers in a plastic housing (IP64) with a constant voltage, a universal input, 20W and a constant current (mixed mode). These devices comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-20-12, PLN-20-18, PLN-20-24, PLN-20-36 and PLN-20-48.

  • single output
  • output: 19,2 to 20,2W
  • input voltage: 90 to 277V AC (47 to 63Hz), 127 to 392V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C
  • dimensions: 148,5x38,5x28mm
  • weight: 180g
PLN-20-48

PLN-20-48

35409 PLN-20-48 PLN-20-48 4711287439914 Mean Well LED driver series PLN-20. LED drivers in a plastic housing (IP64) with a constant voltage, a universal input, 20W and a constant current (mixed mode). These devices comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: PLN-20-12, PLN-20-18, PLN-20-24, PLN-20-36 and PLN-20-48. single output output: 19,2 to 20,2W input voltage: 90 to 277V AC (47 to 63Hz), 127 to 392V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C dimensions: 148,5x38,5x28mm weight: 180g

Specifications

manufacturer
Manufacturer's name PLN-20-48
GTIN 4711287439914
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 83,5
Output current range [A] 0...0,42
Output voltage tolerance: [%] 10
Output power [W] 20,2
Ripple [mV] 3,8
Data Sheet

Unit price

17,79 €

Volume discounts

Quantity Unit price
50 + 16,79 €

Stock: 15
Further delivery:
CW 16/2025
