PLN-100-24

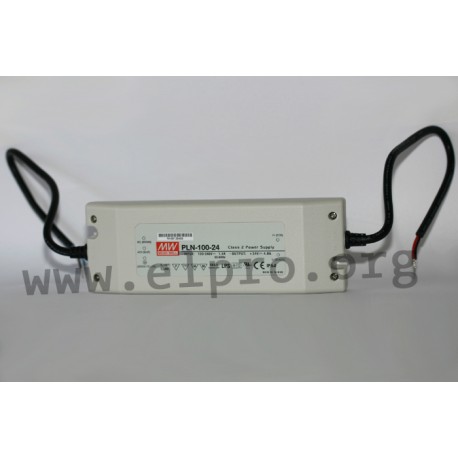

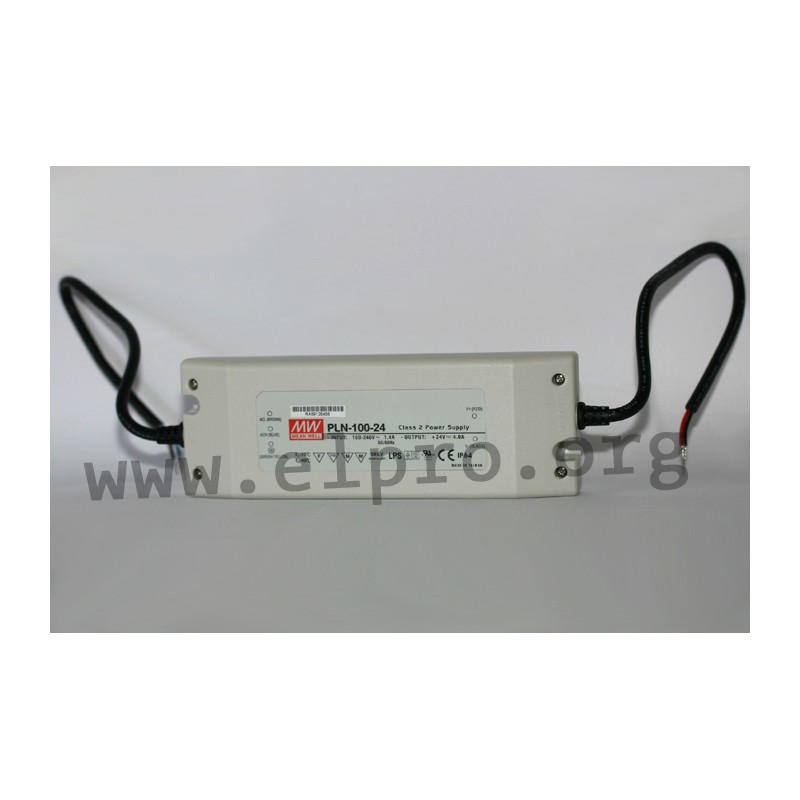

Mean Well LED driver series PLN-100

LED drivers in a plastic housing (IP64) with a universal input, an adjustable output current, an adjustable output voltage and 100W. These devices comply with UL1310 Class 2, EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: PLN-100-12, PLN-100-15, PLN-100-20, PLN-100-24, PLN-100-27, PLN-100-36 and PLN-100-48.

  • single output
  • output: 60 to 96W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 40A
  • overcurrent protection: 95 to 102%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C

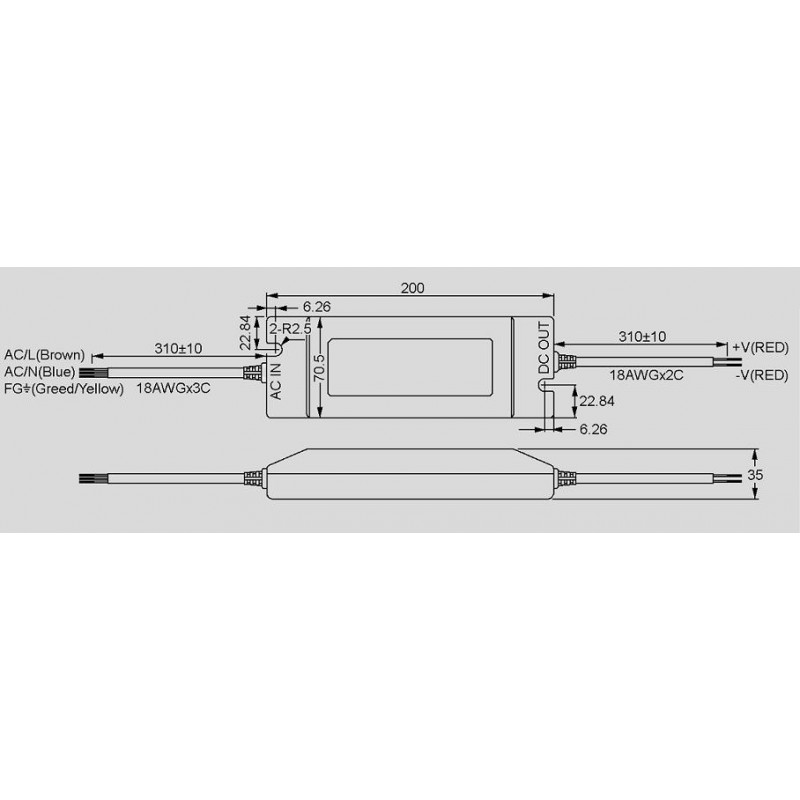

  • dimensions: 200x70,5x35mm
  • weight: 520g
PLN-100-24

PLN-100-24

32657 PLN-100-24 PLN-100-24 4711287460741 Mean Well LED driver series PLN-100. LED drivers in a plastic housing (IP64) with a universal input, an adjustable output current, an adjustable output voltage and 100W. These devices comply with UL1310 Class 2, EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: PLN-100-12, PLN-100-15, PLN-100-20, PLN-100-24, PLN-100-27, PLN-100-36 and PLN-100-48. single output output: 60 to 96W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 40A overcurrent protection: 95 to 102% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 200x70,5x35mm weight: 520g

Specifications

manufacturer
Manufacturer's name PLN-100-24
GTIN 4711287460741
Output voltage [V] 24
Phase 2 phase
Output current adjustment [A] 3...4
Efficiency [%] 88,5
Output current range [A] 4
Output voltage tolerance: [%] 3
Output power [W] 96
Ripple [mVp-p] 150
Output voltage adjustment [V] 20,4...24
Data Sheet

Unit price

35,99 €

Volume discounts

Quantity Unit price
50 + 34,79 €

Stock: 0
Next incoming goods:
CW 48/2024
28 units

Further delivery:
CW 11/2025
