PLM-25-700

Mean Well LED driver series PLM-25

LED drivers in a plastic housing (IP30) with a universal input, a constant current, a low no-load power and 25W. These devices are protected against overload (auto recovery) as well as short circuit and are suitable for LED lighting applications. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-25E-350, PLM-25E-500, PLM-25E-700, PLM-25E-1050, PLM-25-350, PLM-25-500, PLM-25-700 and PLM-25-1050.

  • single output
  • output: 25 to 25,2W
  • input voltage PLM-25_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC
  • input voltage PLM-25E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC
  • maximal input inrush current: 15A
  • no-load power: <0,5W
  • operating temperature: -30 to +45°C
  • withstand voltage I/P-O/P: 3750V AC

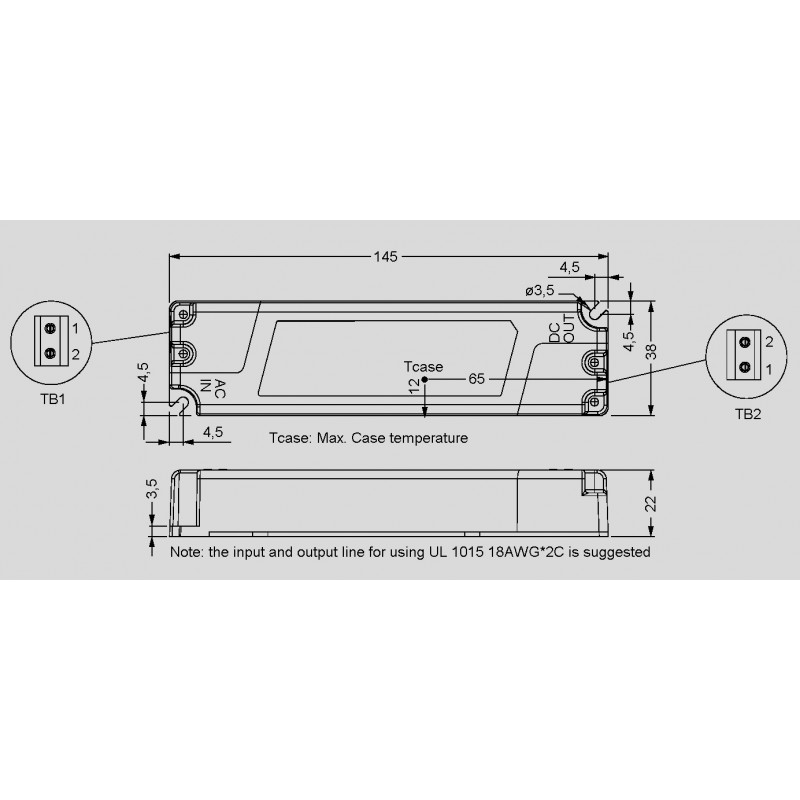

  • dimensions: 145x38x22
  • weight: 126g

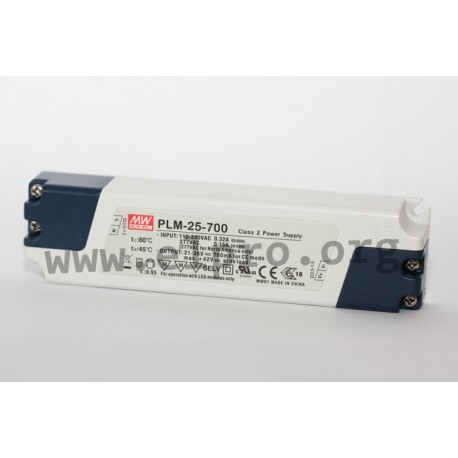

Meanwell PLM-25 series

PLM-25-700

42755 PLM-25-700 PLM-25-700 4711287443317 Mean Well LED driver series PLM-25. LED drivers in a plastic housing (IP30) with a universal input, a constant current, a low no-load power and 25W. These devices are protected against overload (auto recovery) as well as short circuit and are suitable for LED lighting applications. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-25E-350, PLM-25E-500, PLM-25E-700, PLM-25E-1050, PLM-25-350, PLM-25-500, PLM-25-700 and PLM-25-1050. single output output: 25 to 25,2W input voltage PLM-25_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC input voltage PLM-25E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC maximal input inrush current: 15A no-load power: &lt;0,5W operating temperature: -30 to +45°C withstand voltage I/P-O/P: 3750V AC dimensions: 145x38x22 weight: 126g

Specifications

manufacturer
Manufacturer's name PLM-25-700
GTIN 4711287443317
Output voltage [V] 21...36
Phase 2 phase
Output current range [mA] 700
Ripple [Vp-p] 3,6
Efficiency [%] 86
Output power [W] 25,2
Data Sheet

Unit price

11,19 €

Volume discounts

Quantity Unit price
50 + 10,39 €

Stock: 40
Next incoming goods:
CW 12/2025
60 units

Further delivery:
CW 16/2025
