PLM-12-350

Mean Well LED driver series PLM-12

LED drivers in a plastic housing (IP30) with a low no-load power, 12W and a universal input. These devices are protected against overload (auto recovery) as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-12E-350, PLM-12E-500, PLM-12E-700, PLM-12E-1050, PLM-12-350, PLM-12-500, PLM-12-700 and PLM-12-1050.

  • single output
  • output: 12 to 12,6W
  • input voltage PLM-12_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC
  • input voltage PLM-12E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC
  • maximal input inrush current: 15A
  • no-load power: <0,5W
  • operating temperature: -30 to +50°C
  • withstand voltage I/P-O/P: 3750V AC

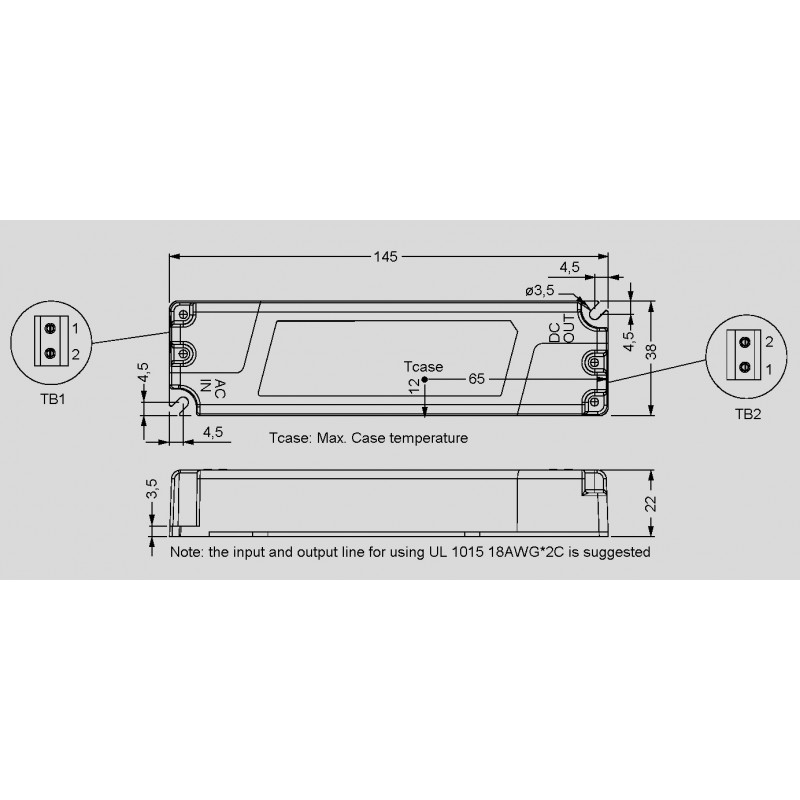

  • dimensions: 145x38x22mm
  • weight: 126g

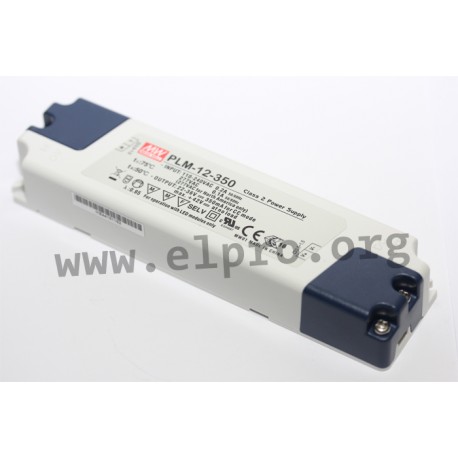

Meanwell PLM-12 series

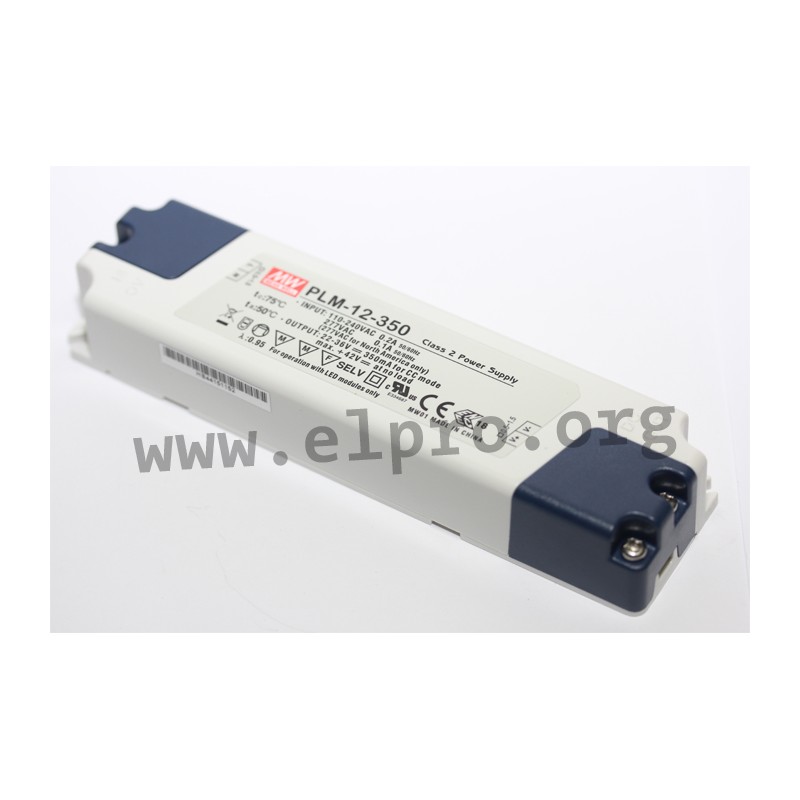

PLM-12-350

42749 PLM-12-350 PLM-12-350 4711287439594 Mean Well LED driver series PLM-12. LED drivers in a plastic housing (IP30) with a low no-load power, 12W and a universal input. These devices are protected against overload (auto recovery) as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-12E-350, PLM-12E-500, PLM-12E-700, PLM-12E-1050, PLM-12-350, PLM-12-500, PLM-12-700 and PLM-12-1050. single output output: 12 to 12,6W input voltage PLM-12_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC input voltage PLM-12E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC maximal input inrush current: 15A no-load power: &lt;0,5W operating temperature: -30 to +50°C withstand voltage I/P-O/P: 3750V AC dimensions: 145x38x22mm weight: 126g

Specifications

manufacturer
Manufacturer's name PLM-12-350
GTIN 4711287439594
Output voltage [V] 22...36
Phase 2 phase
Output current range [mA] 350
Ripple [Vp-p] 3,6
Efficiency [%] 85
Output power [W] 12,6
Data Sheet

Unit price

10,79 €

Volume discounts

Quantity Unit price
50 + 10,09 €

Stock: 0
Next incoming goods:
CW 03/2025
14 units

Further delivery:
CW 16/2025
