PLD-40-500B

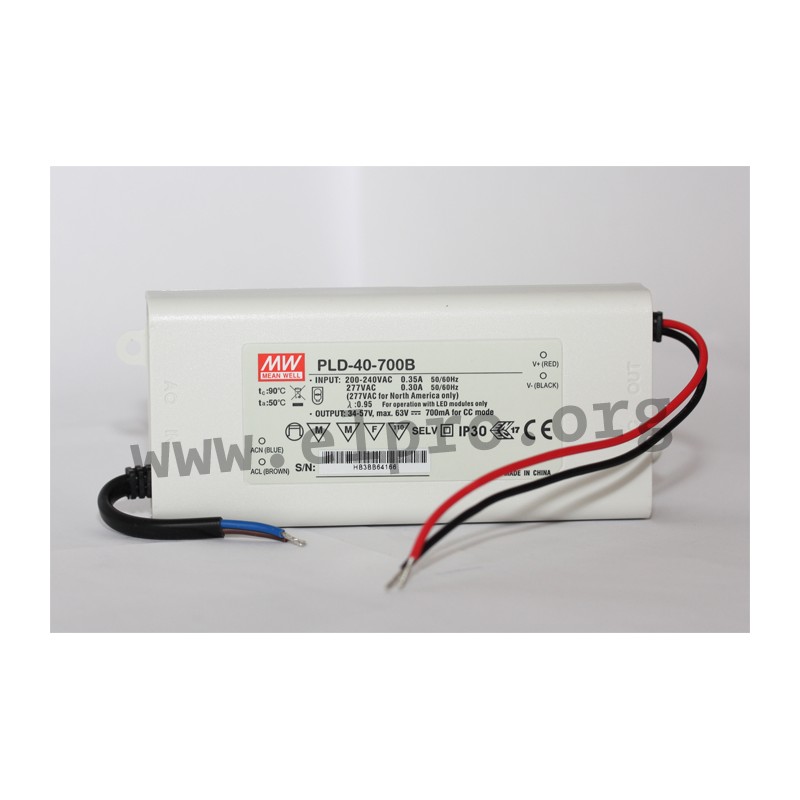

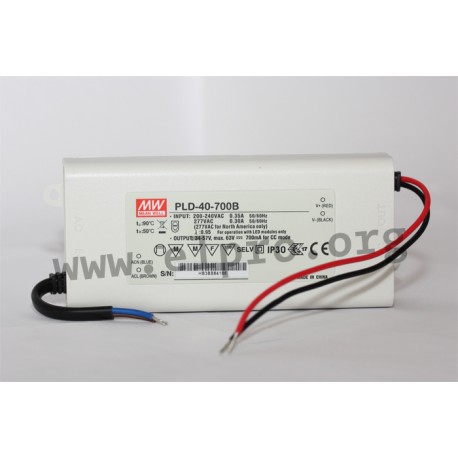

Mean Well LED driver series PLD-40

LED drivers in a plastic housing (IP42) with a constant current, 40W and a stranded wire connection. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are protected against overvoltage, overheat as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLD-40-350B, PLD-40-500B, PLD-40-700B, PLD-40-1050B, PLD-40-1400B and PLD-40-1750B.

  • single output
  • output: 37,8 to 40,6W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +50°C
  • dimensions: 128x60x31,5mm
  • weight: 220g

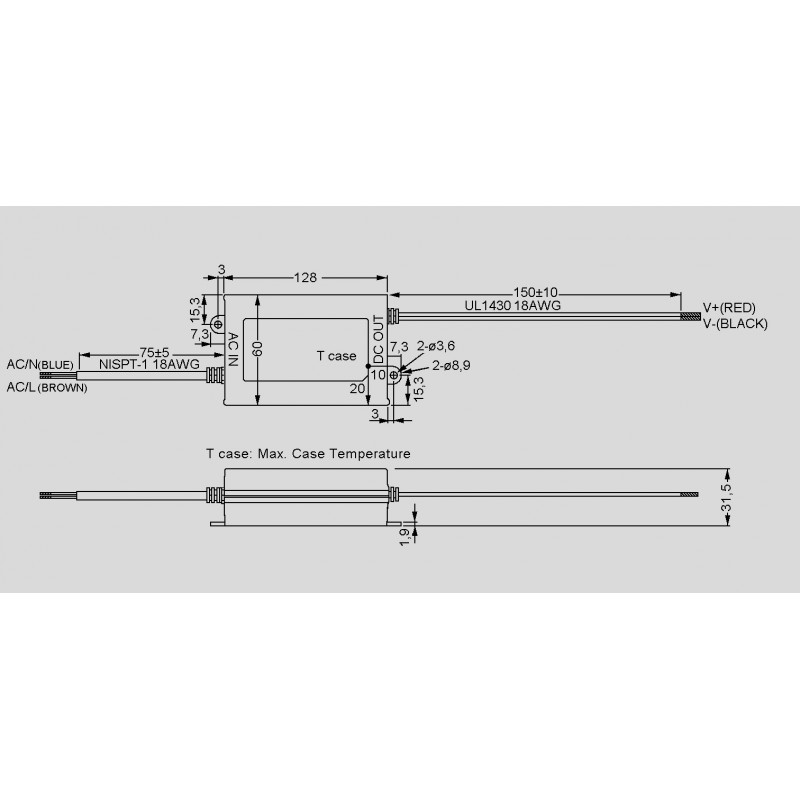

dimensions

PLD-40-500B

41281 PLD-40-500B PLD-40-500B 4711287458144 Mean Well LED driver series PLD-40. LED drivers in a plastic housing (IP42) with a constant current, 40W and a stranded wire connection. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are protected against overvoltage, overheat as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLD-40-350B, PLD-40-500B, PLD-40-700B, PLD-40-1050B, PLD-40-1400B and PLD-40-1750B. single output output: 37,8 to 40,6W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +50°C dimensions: 128x60x31,5mm weight: 220g

Specifications

manufacturer
Manufacturer's name PLD-40-500B
GTIN 4711287458144
Output voltage [V] 45...80
Phase 2 phase
Output current range [mA] 500
Ripple [Vp-p] 5
Efficiency [%] 88
Output power [W] 40
Data Sheet

Unit price

16,99 €

Volume discounts

Quantity Unit price
50 + 15,99 €

Stock: 13
Further delivery:
CW 11/2025
