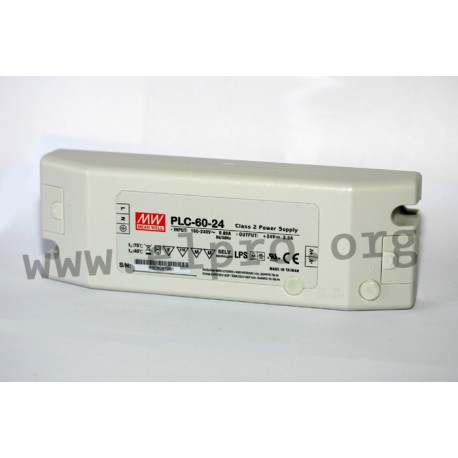

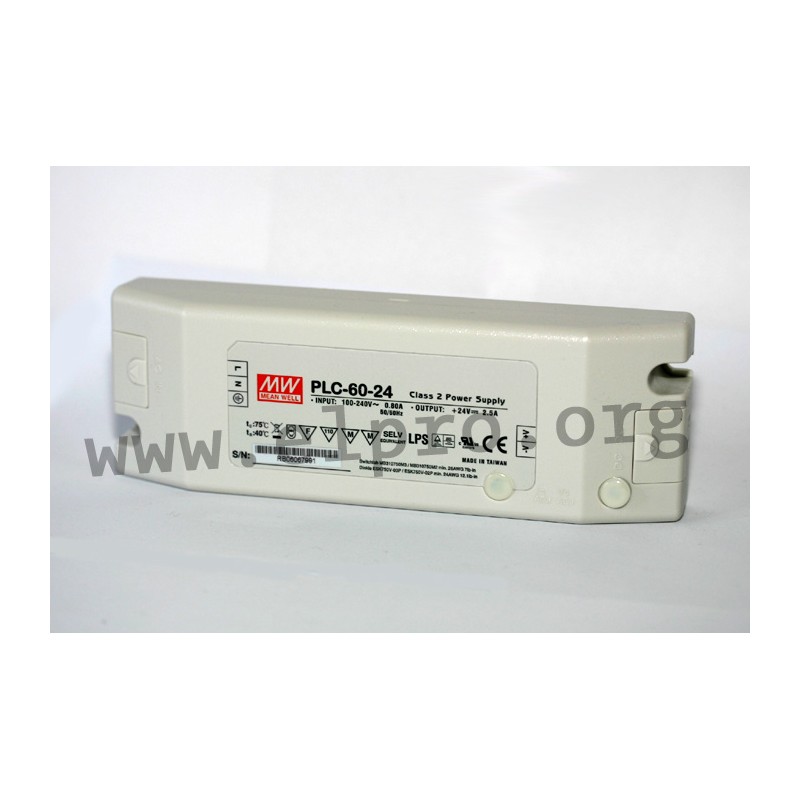

PLC-60-20

Mean Well LED driver series PLC-60

LED drivers in a plastic housing with a constant current / constant voltage (mixed mode), 60W and a screw terminal. These flickerfree devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PLC-60-12, PLC-60-15, PLC-60-20, PLC-60-24, PLC-60-27, PLC-60-36 and PLC-60-48.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C
  • dimensions: 181,5x62x35mm
  • weight: 410g

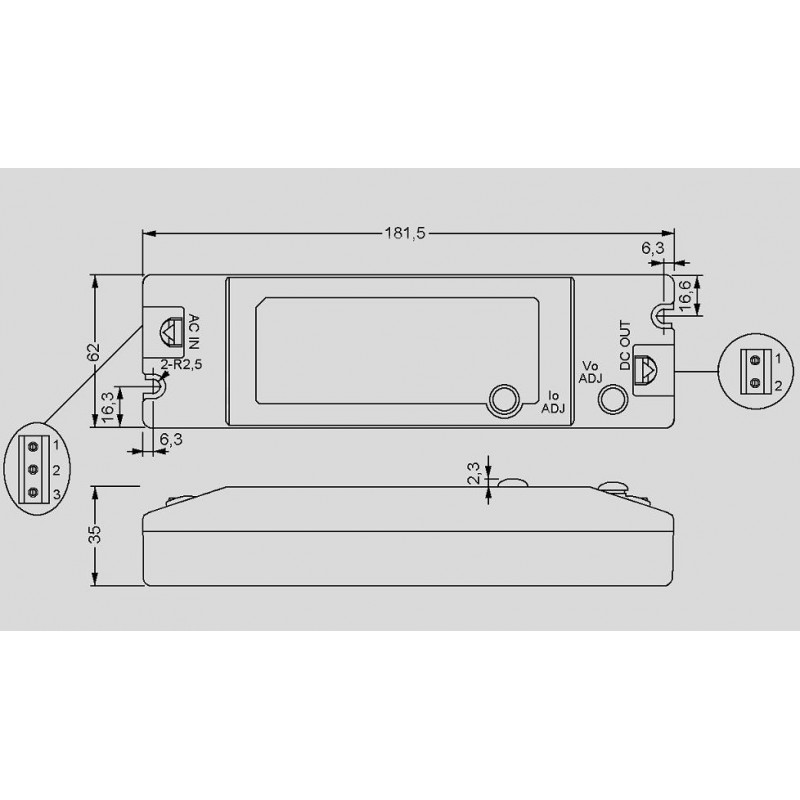

dimensions

PLC-60-20

35433 PLC-60-20 PLC-60-20 4711287460376 Mean Well LED driver series PLC-60. LED drivers in a plastic housing with a constant current / constant voltage (mixed mode), 60W and a screw terminal. These flickerfree devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PLC-60-12, PLC-60-15, PLC-60-20, PLC-60-24, PLC-60-27, PLC-60-36 and PLC-60-48. single output output: 60 to 62,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 181,5x62x35mm weight: 410g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLC-60-20
GTIN 4711287460376
Output voltage [V] 20
Phase 2 phase
Output current adjustment [A] 2,25...3,09
Efficiency [%] 87,5
Output voltage tolerance: [%] 10
Output power [W] 60
Output voltage adjustment [V] 19,5...22
Ripple [mV] 1,8
Data Sheet

Unit price

39,49 €

Stock: 8
Next incoming goods:
CW 12/2025
18 units
