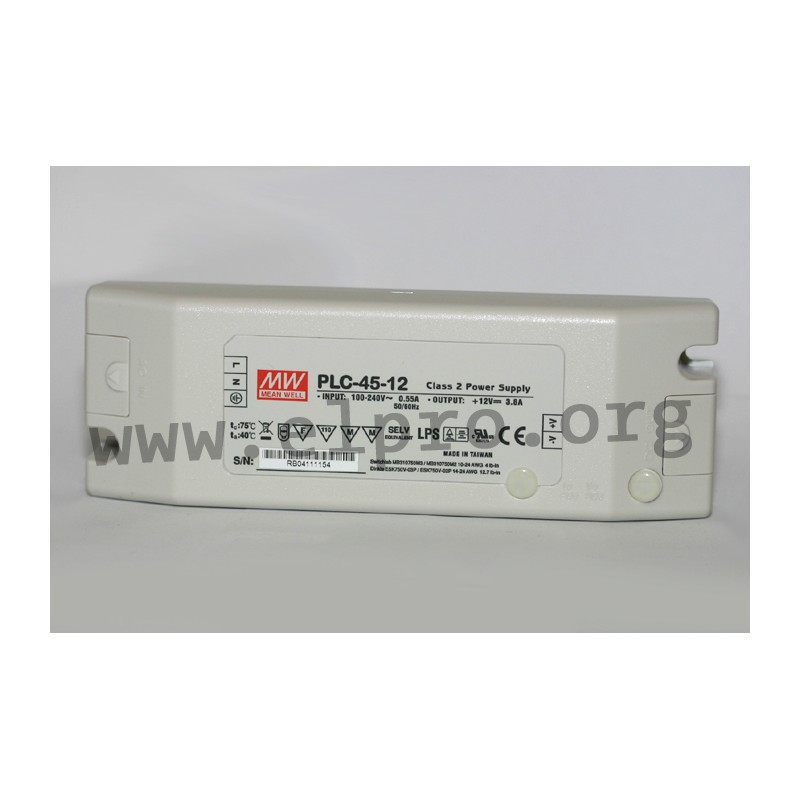

PLC-45-12

Mean Well LED driver series PLC-45

LED drivers in a plastic housing with screw terminals, a constant current / constant voltage (mixed mode), a universal input and 45W. These devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: PLC-45-12, PLC-45-20, PLC-45-24, PLC-45-27, PLC-45-36 and PLC-45-48.

  • single output
  • output: 45 to 46W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C

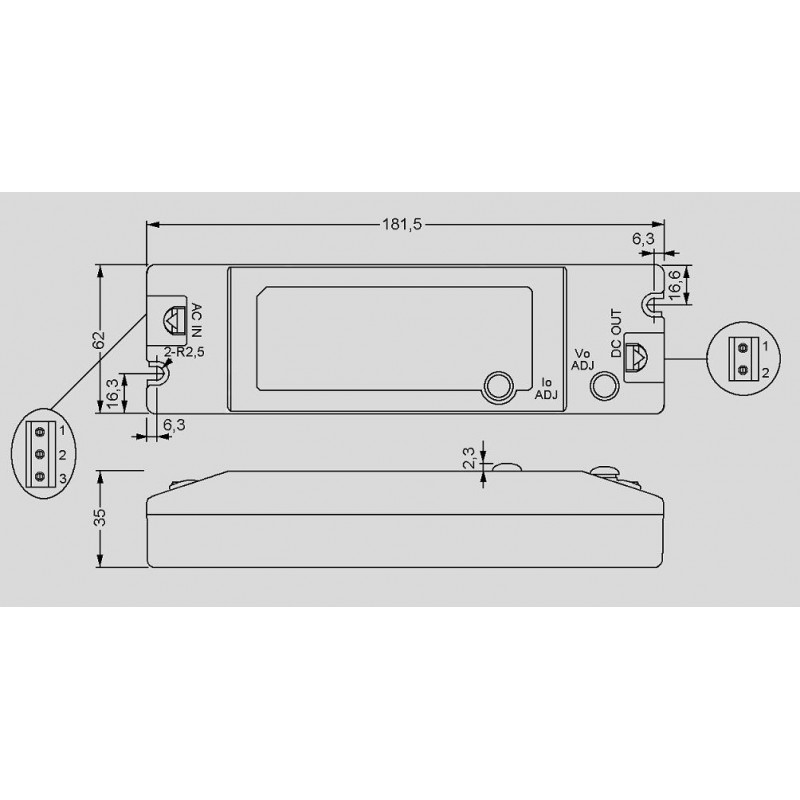

  • dimensions: 181,5x62x35mm
  • weight: 410g

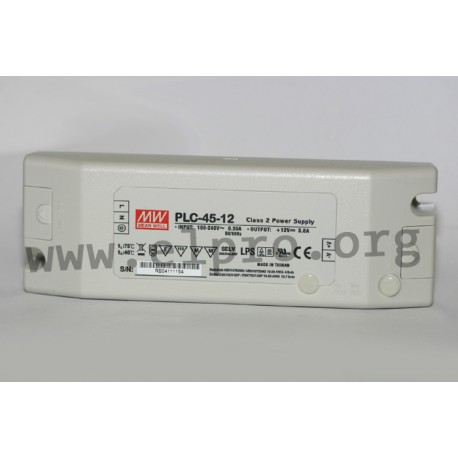

Meanwell PLC-45 series

PLC-45-12

35422 PLC-45-12 PLC-45-12 4711287460284 Mean Well LED driver series PLC-45. LED drivers in a plastic housing with screw terminals, a constant current / constant voltage (mixed mode), a universal input and 45W. These devices comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: PLC-45-12, PLC-45-20, PLC-45-24, PLC-45-27, PLC-45-36 and PLC-45-48. single output output: 45 to 46W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 181,5x62x35mm weight: 410g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLC-45-12
GTIN 4711287460284
Output voltage [V] 12
Phase 2 phase
Output current adjustment [A] 2,85...3,914
Efficiency [%] 83,5
Output voltage tolerance: [%] 10
Output power [W] 45,6
Output voltage adjustment [V] 11,5...13
Ripple [mV] 2
Data Sheet

Unit price

31,90 €

Stock: 19
